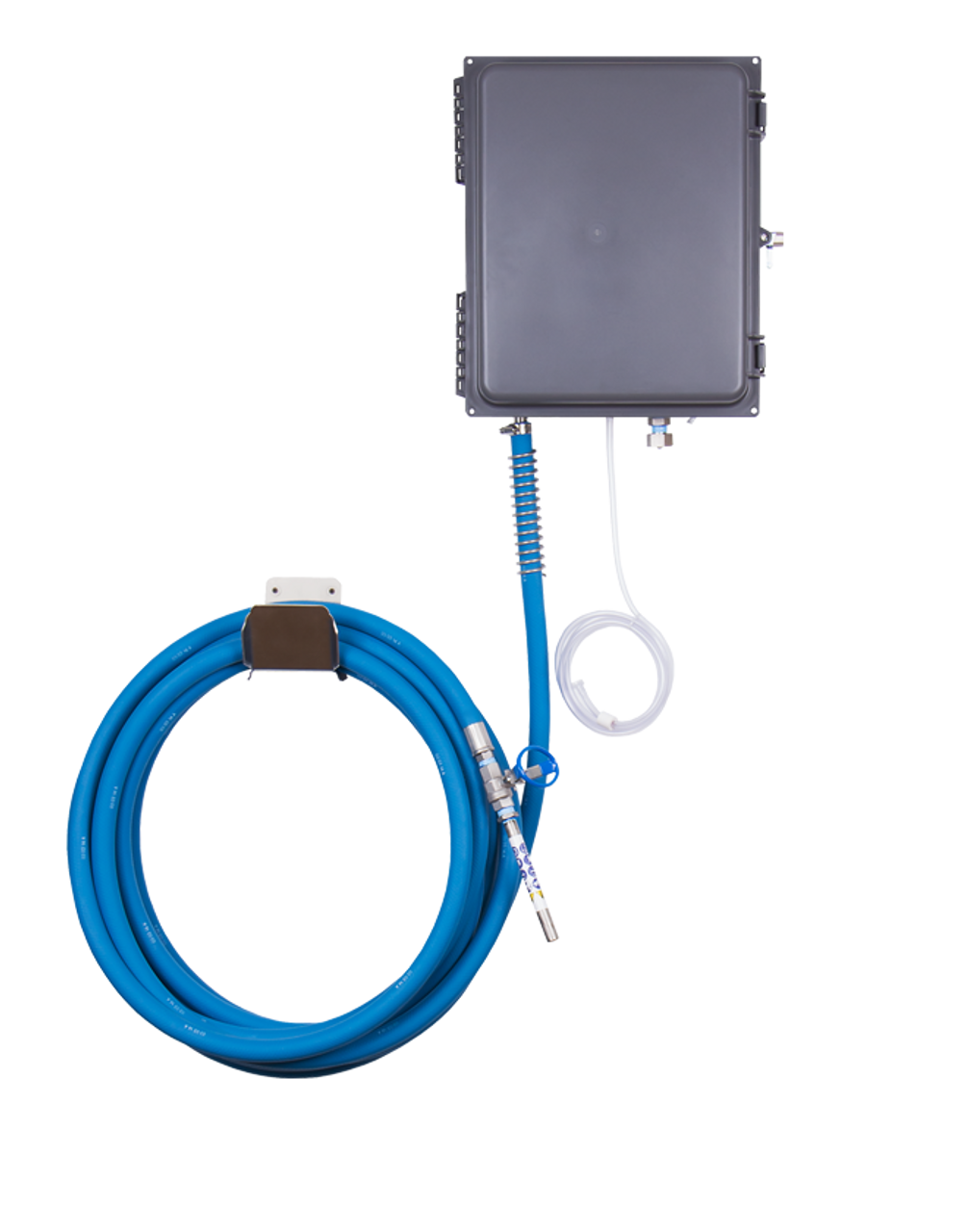

FOAMiT - WALL MOUNTED FOAM UNIT-CONCENTRATE-SANTO-2 PRODUCT INJECTOR w/ 75 Ft. Blue Hose

FoamIt

(No reviews yet) Write a Review
$1,816.43
SKU:
FI-WC-2P-H75BL
Weight:
35.00 LBS
Adding to cart… The item has been added

Product Overview

FOAM-iT product.
  • Draws from concentrated product
  • Dilutes at ratios of 14:1 to 320:1
  • Powered by compressed air
  • Stainless steel ball valve and wand
  • Stainless steel fluid fittings
  • Quick-change pump
COMPRESSED AIR REQUIREMENTS 40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)
WATER REQUIREMENTS 10-100 psi (0.69-6.9 bar)
Backflow prevention is required – consult local plumbing ordinances for more information.
LIQUID TEMPERATURE RANGE 40-100ËšF (4.4-37ËšC)
CHEMICAL COMPATIBILITY Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or MSDS for your product or contact our customer service department.



POWER TYPE Compressed air
CHEMICAL PICKUP TYPE Draws from concentrated product
DILUTION RATIO RANGE (WATER:CHEMICAL)* 14:1 to 320:1
NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME) One product
SUCTION LINE LENGTH/DIAMETER 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
DISCHARGE HOSE DIAMETER/LENGTH 75 ft. (15 m) hose, with 3/4 in. (19 mm) inside diameter)
DISCHARGE WAND/TIP TYPE 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
OUTPUT DISTANCE 25-30 ft. (7-9 m)
OUTPUT VOLUME 20-45 gal/min (75-170 l/min) of foam
FLOW RATE* 2 gal/min (7.6 l/min))
PUMP SEALS Santoprene, Viton, or Kalrez



*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
