Product Overview

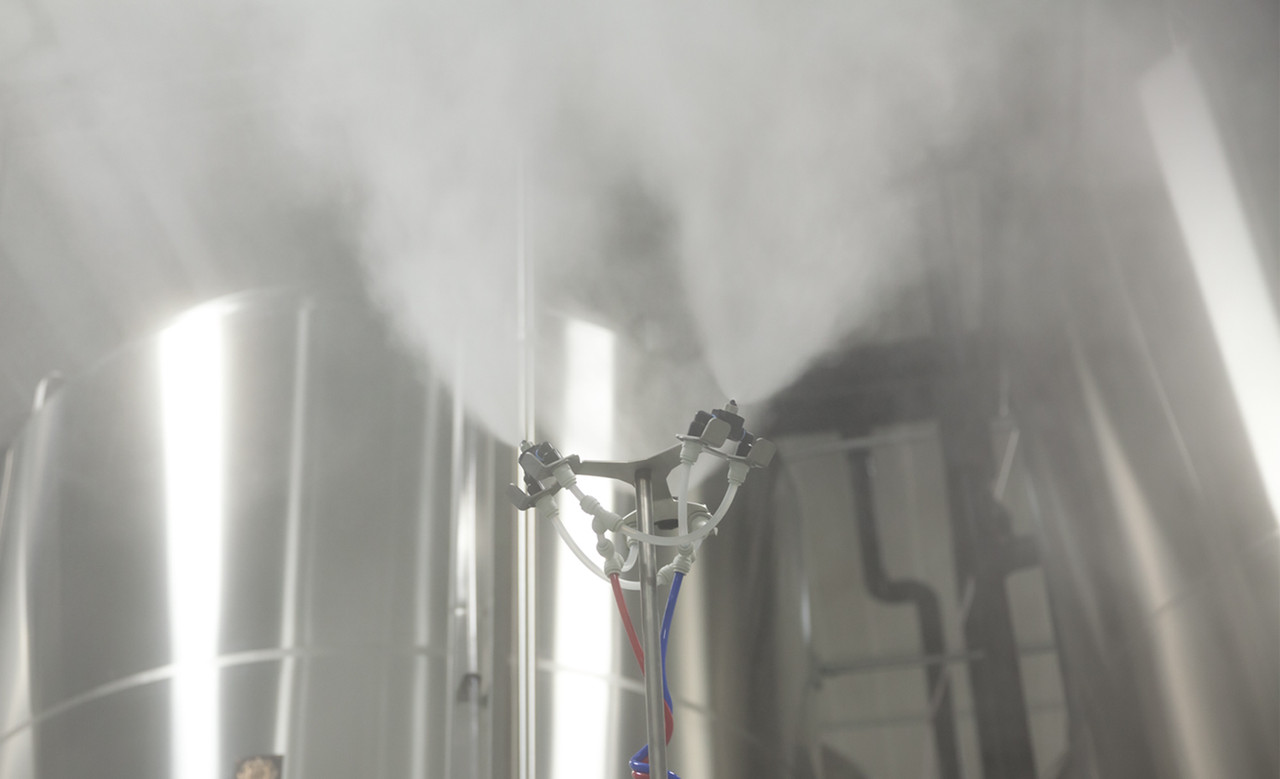

Scalable misting system with timer control.
- Draws from pre-mixed solution
- Powered by compressed air and electricity
- Quick-change pump
- Single shot timer with delay on make
- With MU-NA-N130 nozzle assemblies:
- Droplet size: 15 microns at 50 psi (3.4 bar)
- Polypropylene and Kynar nozzle construction
- Up to 20 nozzles per control box
- With MU-NA-26SS nozzle assemblies:
- Droplet size: 35 microns at 50 psi (3.4 bar)
- Celcon, stainless steel, EPDM, and nylon nozzle construction
- Up to 12 nozzles per control box
- power type - Compressed air
- chemical pickup type - Draws from pre-mixed solution
- number of products unit can draw from (and whether it draws simultaneously or one at a time) - One product
- suction line length/diameter - 8 ft. (2.4 m) hose with 3/8 in. (9.5 mm) inside diameter
- flow rate* -
- WITH MU-NA-N130 NOZZLES: 7.9 oz/min (0.23 l/min)
WITH MU-NA-26SS NOZZLES: 5.3 oz/min (0.16 l/min)
- pump seals - Santoprene, Viton, or Kalrez
- nozzle construction
- WITH MU-NA-N130 NOZZLES: Polypropylene and Kynar
WITH MU-NA-26SS NOZZLES: Celcon, stainless steel, EPDM and nylon
- timer operation type - Delay on make single shot
- droplet size -
- WITH MU-NA-N130 NOZZLES: 15 microns at 50 psi (3.4 bar)
WITH MU-NA-26SS NOZZLES: 35 microns at 50 psi (3.4 bar)
- coverage area** - 1 liter of solution will cover approximately 1000 cubic feet
- coverage pattern -
- WITH MU-NA-N130 NOZZLES: Flat pattern with projection up to 10 ft. (3 m) from nozzle
WITH MU-NA-26SS NOZZLES: Pattern up to 8 ft. (2.4 m) wide (side to side) and 3 ft. (0.9 m) thick (top to bottom), with projection up to 15 ft. (4.6 m) from nozzle
- number of nozzles -
- WITH MU-NA-N130 NOZZLES: 1-20 nozzles per control box
WITH MU-NA-26SS NOZZLES: 1-12 nozzles per control box
- tubing/fitting sizes - Designed for use with 3/8 in. (9.5 mm) outside diameter tubing between control box and nozzle(s)
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
**Area covered and run time may vary based on humidity, air flow, and product used.
***Number of nozzles is dependent upon air supply (see Compressed Air Requirements)
Requirements:
- compressed air requirements -
- WITH MU-NA-N130 NOZZLES: At factory air pressure setting of 50 psi (3.4 bar): 2 cfm (56.6 l/min) for control box, plus 2.5 cfm (70.8 l/min) per nozzle - Maximum incoming air pressure: 150 psi (10.3 bar)
WITH MU-NA-26SS NOZZLES: At factory air pressure setting of 50 psi (3.4 bar): 2 cfm (56.6 l/min) for control box, plus 5 cfm (142 l/min) per nozzle - Maximum incoming air pressure: 150 psi (10.3 bar)
-
liquid temperature range -40-100ËšF (4.4-37ËšC)
-
electrical requirements - 120 VAC at 60 Hz, 2 amps (GFCI protected outlet)
-
operating voltage - 120 VAC
-
chemical compatibility - Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
