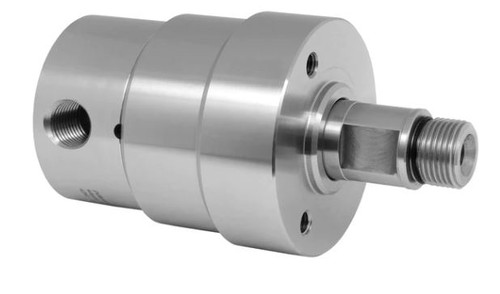

Mosmatic DYT 90 degree Swivel (Rotary Union) Inlet 3/4" NPTF x G3/8" M Out (3/8" Nominal Width)

Mosmatic rotary unions DYT swivel 90 degrees G1 3/4"NPTF G2 G3/8"M

High pressure/rpm, thrust and radial force, self rotating applications, surface cleaners, parts washer

• Quadruple bearing system
• High precision and quality
• Seal failure warning, through weep holes
• Sealed stainless steel bearings
• Carbide seals

G1 3/4”NPTF, G2 G3/8”M, NW 3/8”, SW1 0.63, L1 3.62, L2 5.08, L3 0.47, Weight 61.7 oz

Technical data

• Pressure: DYT:5000 psi(35 MPa), DYU: 7300 psi (50 MPa)
• Temperature: 250 °F
• RPM: max. 2’000 rpm)
• Body: stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 2x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)
