Product Overview
Application: Hose Reels
Designed for low pressure (725 psi)
- Complete Stainless Steel
- Maintenance Free
- Compact Design
- Sliding Bearing System

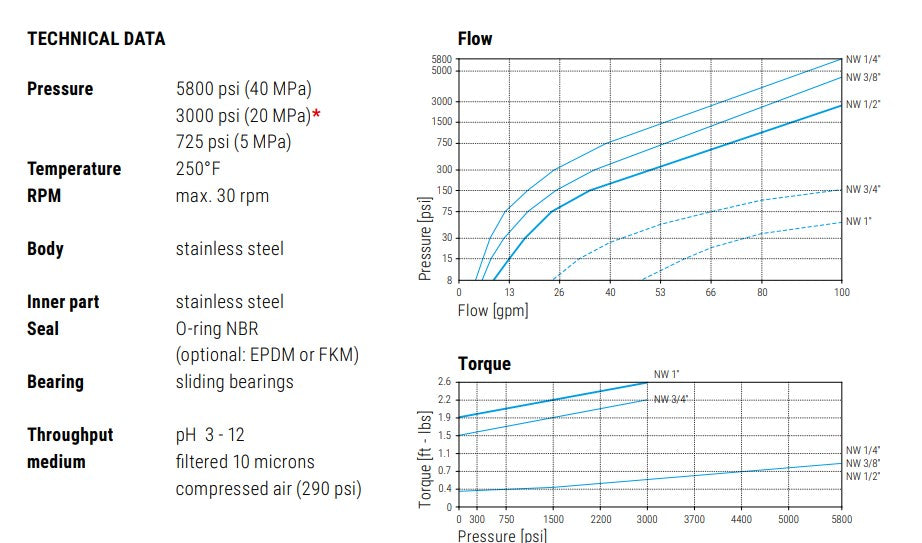

Technical Data:
Pressure: 725 psi (5 MPa)
Temperature: 250º
RPM: max 30 rpm
Body: Stainless Steel
Inner Part: Stainless Steel
Seal: O-Ring NBR( optional: EPDM or FKM)
Bearing: Sliding Bearings
Throughput: pH 3-12
Medium: Filtered 10 Microns, Compressed Air (290 psi)
Diagram Reference:
G1 (F) =1/4" NPTF
G2 (M) =1/4" NPTM
NW = 1/4"
L1 = 1.77
L2 = 1.89
L3 = 1.14
L4 = 1.30
D1 = 1.25
SW = .87
Weight = 8.5 oz
