Product Overview

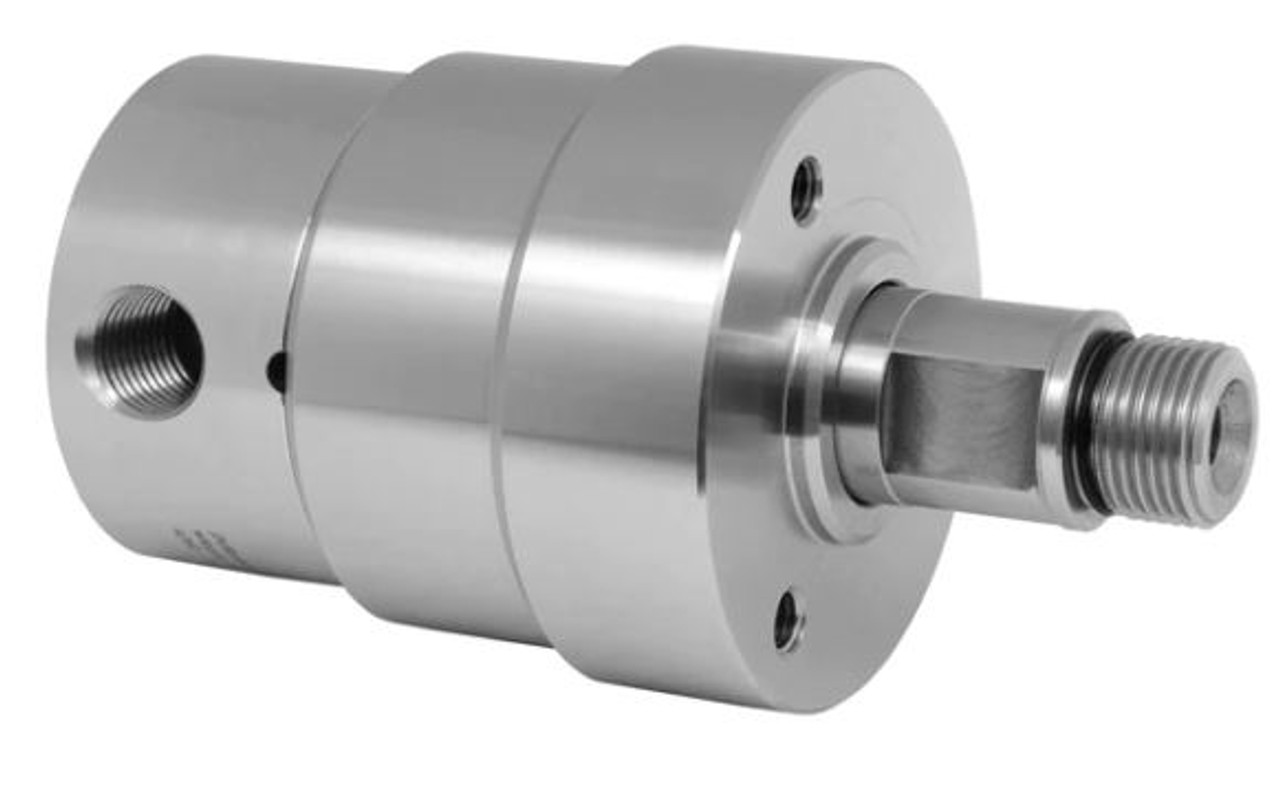

Mosmatic rotary unions DYT swivel 90 degrees G1 1/4"NPTF G2 1/4"NPTM
High pressure/rpm, thrust and radial force, self rotating applications, surface cleaners, parts washer
- Quadruple bearing system
- High precision and quality
- Seal failure warning, through weep holes
- Sealed stainless steel bearings
- Carbide seals
G1 1/4NPTF, G2 1/4”NPTM, NW 1/4”, SW1 0.63, L1 3.83, L2 4.29, L3 0.47, Weight 45.9 oz
Technical data
- Pressure: DYT:5000 psi(35 MPa), DYU: 7300 psi (50 MPa)
- Temperature: 250 °F
- RPM: max. 2’000 rpm)
- Body: stainless steel
- Inner part: Stainless steel
- Seal: carbide
- Bearing: 2x radial ball bearings, 2x thrust ball bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
