Product Overview
Hose reels
- Complete stainless steel
- Maintenance free
- Compact design
- Sliding bearings system
G1 (F) 1”NPTF, G2 (F) 1”NPTF, NW 1”, L1 3.35, L2 3.07, L3 2.17, L4 1.89, D1 2.35, SW 1.61
WDEI-25 1"NPT-F 1"NPT-F NW25 ø35

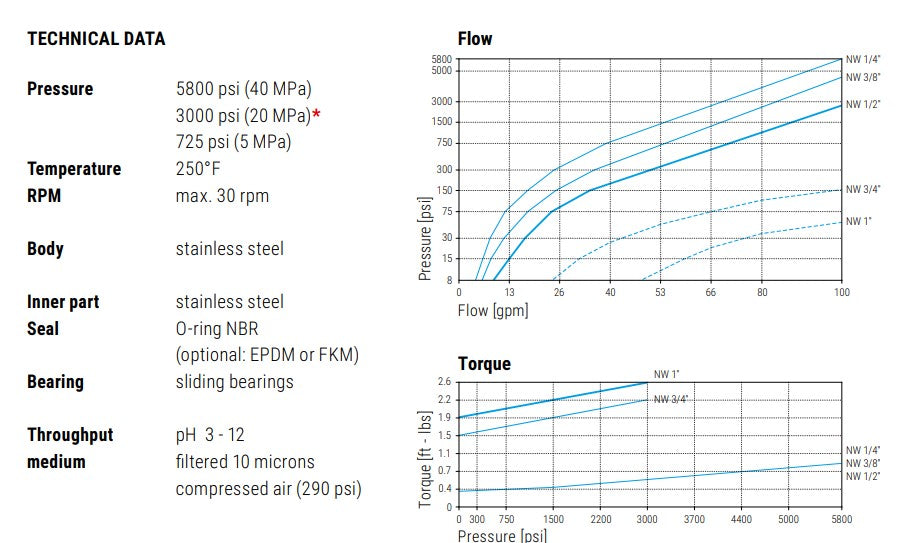

Technical data
- Pressure: 725 psi
- Temperature: 250°F
- RPM: max. 30 rpm
- Torque: max. 37 ft-lbs
- Body: stainless steel
- Inner part: Stainless steel
- Seal: O-ring NBR (optional: EPDM or FKM)
- Bearing: sliding bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
