Product Description

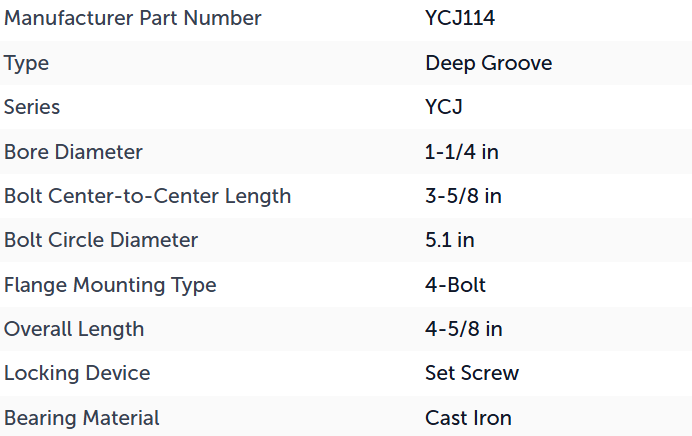

Flange Mount Ball Bearing Unit, Deep Groove, Series: YCJ, 1-1/4 in Bore Dia, 3-5/8 in Bolt Center-to-Center Length, 5.1 in Bolt Circle, 4-Bolt Flange Mounting, 4-5/8 in Overall Length, Set Screw, Cast Iron Bearing
- Incorporates Shaft Guarding Technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
- The same basic design as the RCJ series, except specially designed set screws are used as the locking device instead of an eccentric collar
- All units are equipped with GY-KRRB wide-inner-ring set screw bearings
- Spherical outside diameter of the bearings mounted in the corresponding machined housing seats provides the initial self-alignment
- Bolt-hole spacing dimensions are interchangeable with the RCJ series and most competitive units
- Units are factory-prelubricated, but a grease fitting is provided for relubrication if required
- Safety end caps are available for selected sizes
