Product Description

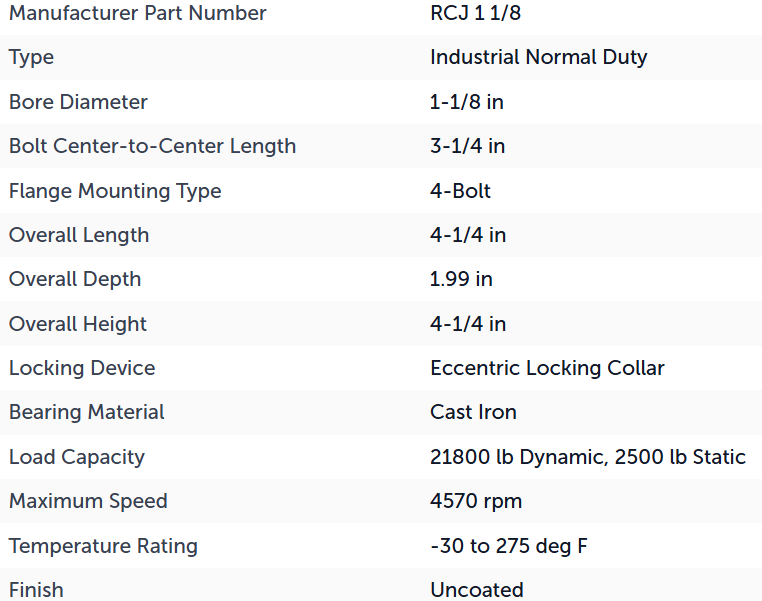

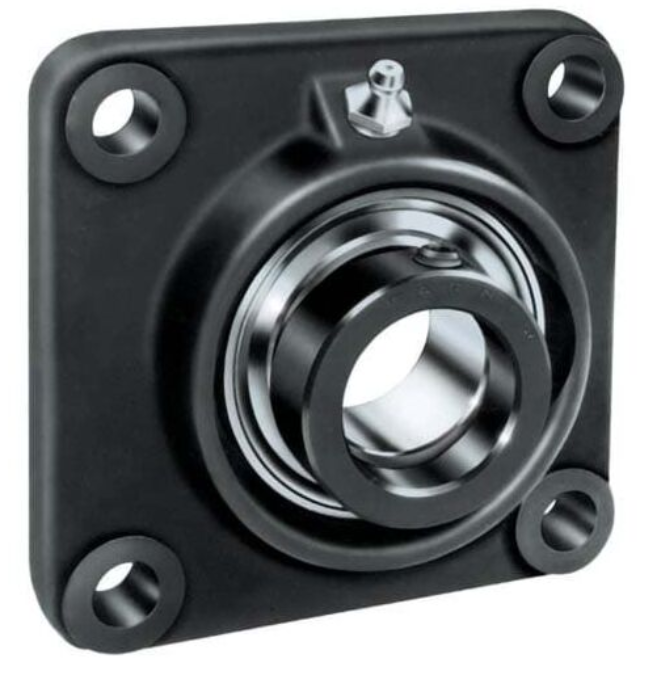

Flange Mount Ball Bearing Unit, Industrial Normal Duty, 1-1/8 in Bore Dia, 3-1/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-1/4 in Overall Length, 1.99 in Overall Depth, 4-1/4 in Overall Height, Eccentric Locking Collar, Cast Iron Bearing, 21800 lb Dynamic, 2500 lb Static, 4570 rpm Maximum, -30 to 275 deg F, Uncoated
- Timken cartridges are used in applications where a minimum amount of machining is to be done
- Each unit comes assembled and ready for mounting, with bolts through the flange
- These are wide-inner-ring ball bearings, self-aligning B-types, which compensate for shaft misalignment
- The RCJ flange cartridge is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings
- The units are factory pre-lubricated
- The units are supplied with self-locking collars
