  • Timken 3/4 in 2-1/2 in Cast Iron Industrial Normal Duty Flange Mount Ball Bearing Unit

    • Timken 3/4 in 2-1/2 in Cast Iron Industrial Normal Duty Flange Mount Ball Bearing Unit

    Timken

    MSRP: $128.88
    $103.10
    (You save $25.78 )
    (No reviews yet) Write a Review
    SKU:
    RCJ34
    Weight:
    1.00 LBS
    Width:
    2.00 (in)
    Height:
    4.00 (in)
    Depth:
    3.50 (in)
    Adding to cart… category.add_cart_announcement

    Product Description

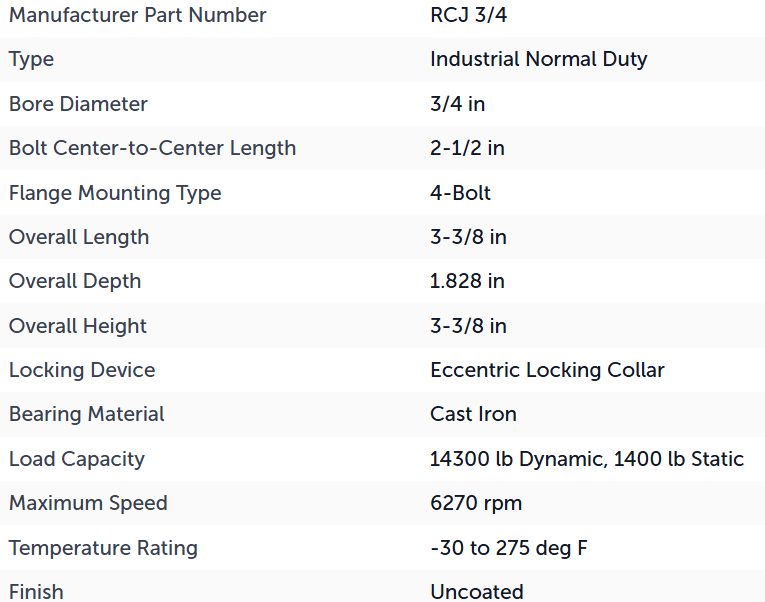

    Flange Mount Ball Bearing Unit, Industrial Normal Duty, 3/4 in Bore Dia, 2-1/2 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 3-3/8 in Overall Length, 1.828 in Overall Depth, 3-3/8 in Overall Height, Eccentric Locking Collar, Cast Iron Bearing, 14300 lb Dynamic, 1400 lb Static, 6270 rpm Maximum, -30 to 275 deg F, Uncoated

    • Timken cartridges are used in applications where a minimum amount of machining is to be done
    • Each unit comes assembled and ready for mounting, with bolts through the flange
    • These are wide-inner-ring ball bearings, self-aligning B-types, which compensate for shaft misalignment
    • The RCJ flange cartridge is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings
    • The units are factory pre-lubricated
    • The units are supplied with self-locking collars
