SPECIFICATIONS:

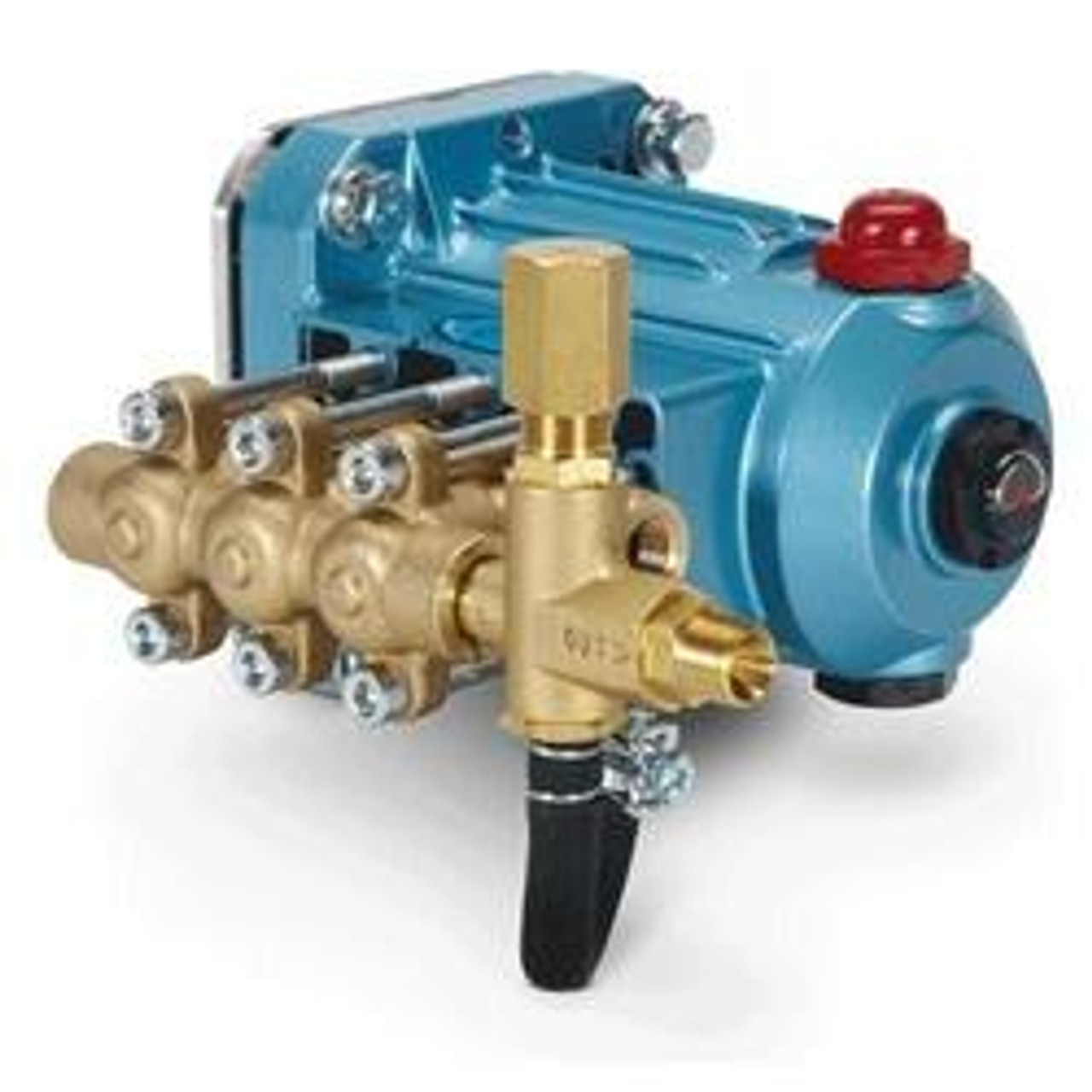

- Triplex Plunger Pump
- Direct Drive with Electric Flange
- Maximum Volume: 2.2 GPM
- Maximum Discharge Pressure: 1200 PSI
- Maximum Inlet Pressure: 75 PSI
- Maximum Pump Speed: 1725 RPM
- Minimum Horsepower Requirements: 1.8 bhp
- Bore: .708" (18mm)
- Stroke: .248" (6.3mm)
- Crankcase Capacity: 11 oz use CAT Pump hydraulic oil
- Inlet Port: 3/8" FPT
- Discharge Ports: Dual 3/8" FPT
- Bypass Port: 1/4" FPT
- Dimensions: 9.13" x 6.65" x 6.50"
- Weight: 10.6 lbs.
Lubrication: fill crankcase with CAT Pump hydraulic oil per pump specifications. DO NOT RUN PUMP WITHOUT OIL IN CRANKCASE. Change initial oil after a 50 hour break-in period, and every three months or 500 hour intervals thereafter.
|
