Product Overview

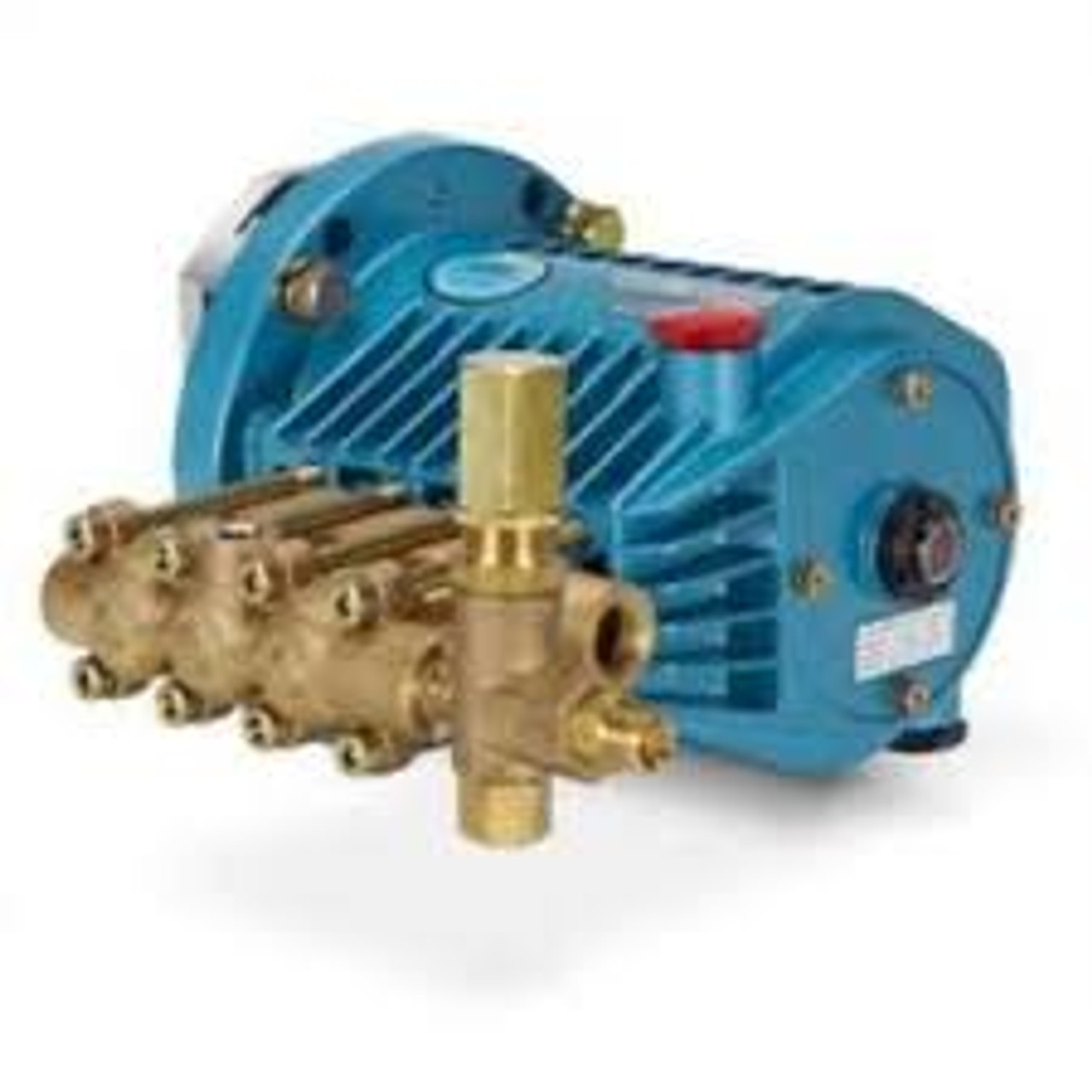

4SF35GS1 PUMP SLEEVED 3.5/3500
FEATURES:
- Triplex design provides smoother liquid flow
- Unique spring loaded inlet valves and the flow through cermaic plungers allow excellent suction capabilities
- Compact, hollow shafted pump for direct mounting to either gas or electric motor, eliminates the need for pulleys, belts, gearboxes
- Regulating unloader mounts directly on each pump to assure system pressure control and pump protection
- convenient multiple porting provides installation flexibility.
SPECIFICATIONS:
- Maximum flow: 3.5GPM
- Maximum discharge pressure: 3500 PSI
- Maximum RPM: 3200 RPM
- Maximum inlet pressure: Flooded to 75 PSI
- Bore: 20mm
- Maximum Liquid temperature: 160 F.
- Shaft: 1" hollow shaft with bolt and adapter
- Crankcase capacity: 23.66 oz.
- Inlet port: 1/2" FPT
- Discharge ports: Dual 3/8" FPT
- Bypass port: 3/8" FPT
- Auxillary port: 1/4" FPT
- Weight: 24.31 lbs.
