  • 5 HP 1725RPM C-FACE 1 1/8" SHAFT TEFC BALDOR CL3612TM 230V ONLY

    • 5 HP 1725RPM C-FACE 1 1/8" SHAFT TEFC BALDOR CL3612TM 230V ONLY

    Baldor

    MSRP: $1,988.82
    $1,611.06
    (You save $377.76 )
    (No reviews yet) Write a Review
    SKU:
    3128
    UPC:
    CL3612TM, 8.709-784.0
    Weight:
    105.00 LBS
    Width:
    30.00 (in)
    Height:
    30.00 (in)
    Depth:
    40.00 (in)
    Adding to cart… category.add_cart_announcement

    Product Description

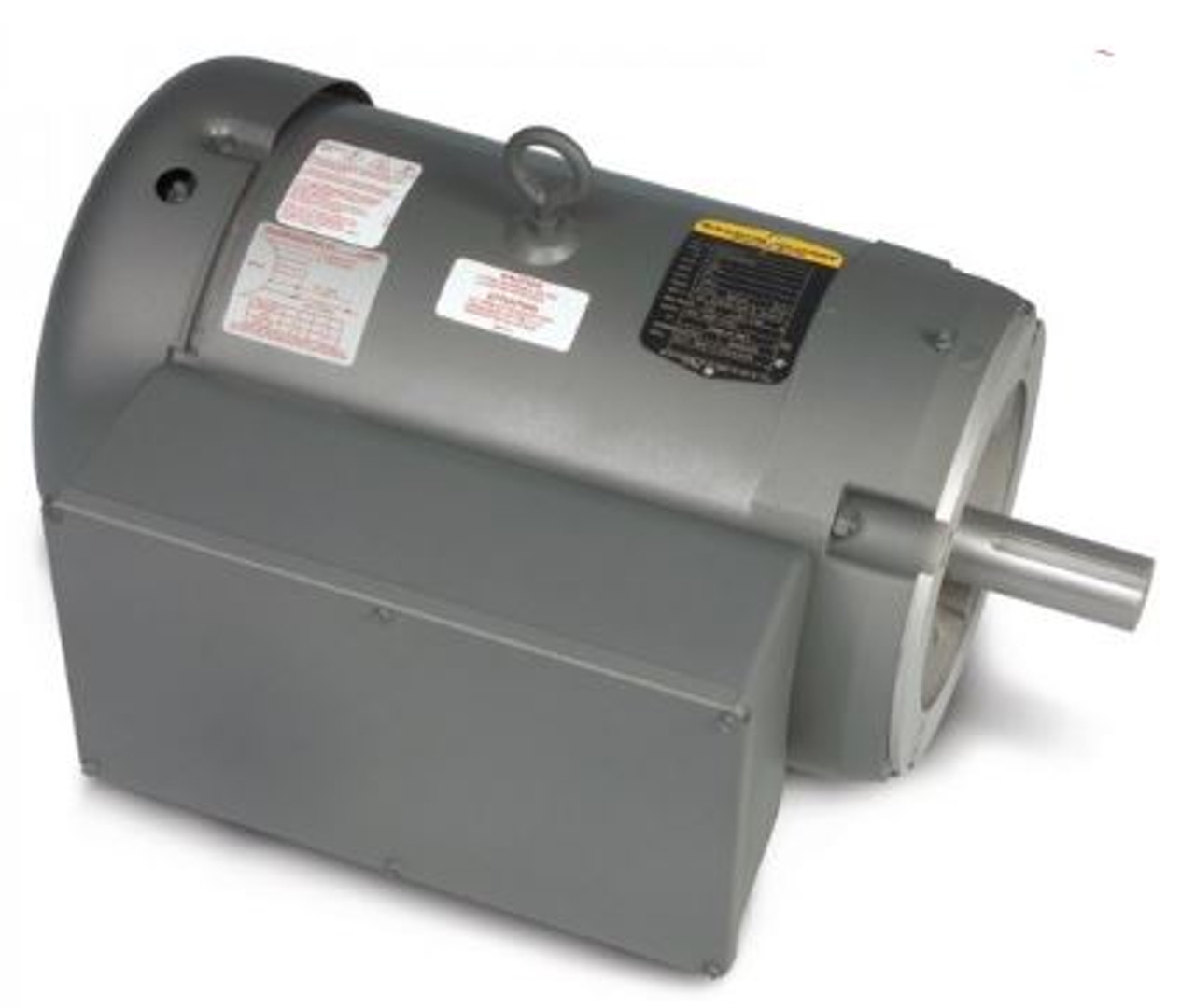

    5 HP 1725RPM C-FACE 1 1/8" SHAFT TEFC BALDOR CL3612TM 230V ONLY

    FEATURES:
    • Ball bearing design
    • 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts
    • Manual thermal overload located in the conduit box
    • UL and CSA recognized component approval
    • 200 C copper windings

      APPLICATIONS:

      • Pressure washers
      • Steam cleaners
      • Portable and self contained stationary system for direct drive mount and coupled mount designs

    SPECIFICATIONS:
    • Specification number: 36F189W279
    • Rigid Base with C-Face
    • Totally Enclosed, Fan Cooled (TEFC)
    • Shaft: 1-1/8"
    • Frame: 184TC
    • Horsepower: 5.0
    • Voltage: 230
    • Hertz: 60
    • Phase: 1
    • Full Load Amps: 23
    • RPM: 1725
    • Service factor: 1.00
    • Full Load Efficiency: 80
    • Power factor: 88
    • Weight: 101 lbs
