  • 5CP3120G1 CAT PUMP W/GEARBOX 4.5GPM 3500PSI 1645RPM 1"SHAFT (PUMP RAILS NOT INCLUDED)

    • 5CP3120G1 CAT PUMP W/GEARBOX 4.5GPM 3500PSI 1645RPM 1"SHAFT (PUMP RAILS NOT INCLUDED)

    CAT

    MSRP: $2,634.37
    $1,664.26
    (You save $970.11 )
    (No reviews yet) Write a Review
    SKU:
    5CP3120G1
    Weight:
    28.00 LBS
    Width:
    18.00 (in)
    Height:
    15.00 (in)
    Depth:
    18.00 (in)
    Adding to cart… category.add_cart_announcement

    Product Description

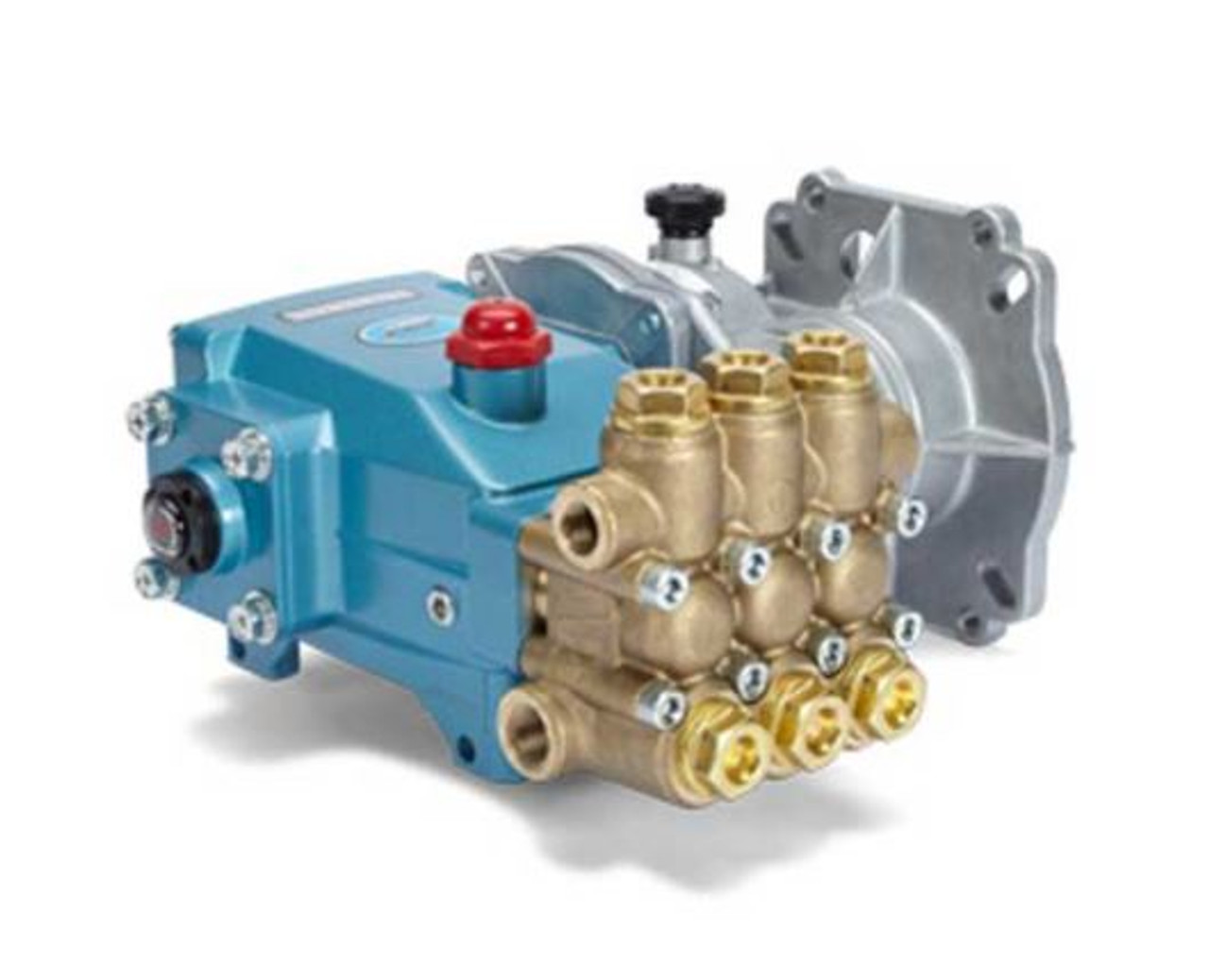

    CAT Pump 5CP3120G1 - 5CP Plunger Pump w/Helical Gearbox

    1" Shaft, 4.5GPM, 3500PSI, 1645/3353 RPM, Inclds: 5CP3120, 8076.

    • Industrial triplex design offers reliability and versatility.
    • Ultra-compact footprint of the CAT Pump 5CP3120G1 features single shaft with side gauge.
    • Optional direct-drive mount to motor using bell housing and flexible coupling.
    • Optional drive mount to gas engine with gearbox.
    • Optional belt-drive for precision flow setting.
    • Optional STHT, EPDM and FPM elastomers for compatibility with many liquids and temperatures up to 200 °F.
    • The CAT Pump 5CP3120G1 has Press-in seal cases and interchangeable valve assemblies for easy servicing

    Features

    • MODEL 5CP3120G1
    • Flow..........................................................................................4.5 gpm (17 lpm)
    • Pressure Range ............................................................100-3500 psi (7-245 bar)
    • Pump RPM .........................................................................1645 rpm (1645 rpm)
    • Engine RPM..................................................................... 3353 rpm (3353 rpm)
    • Stroke...........................................................................................0.709” (18 mm)
    • Weight.....................................................................................26.5 lbs. (12 kg)
    • Dimensions.......................................11.0 x 12.7 x 6.4” (279 x 324 x 163 mm)
    • Inlet Pressure Range......................... -2.5 to 60 psi (-.2 to 4 bar)
    • Bore........................................................ 0.630” (16mm)
    • Crankcase Capacity........................... 17 oz. (0.51 l)
    • Standard Liquid Temperature...... 160°F (71°C)
    • Above 130°F call CAT PUMPS for inlet conditions and elastomer recommendations.
    • Inlet Ports (2)....................................... 1/2” NPTF (1/2” NPTF)
    • Discharge Ports (2)............................ 3/8” NPTF (3/8” NPTF)
    • Shaft Diameter................................... 0.787” (20 mm)
