Product Description
Description

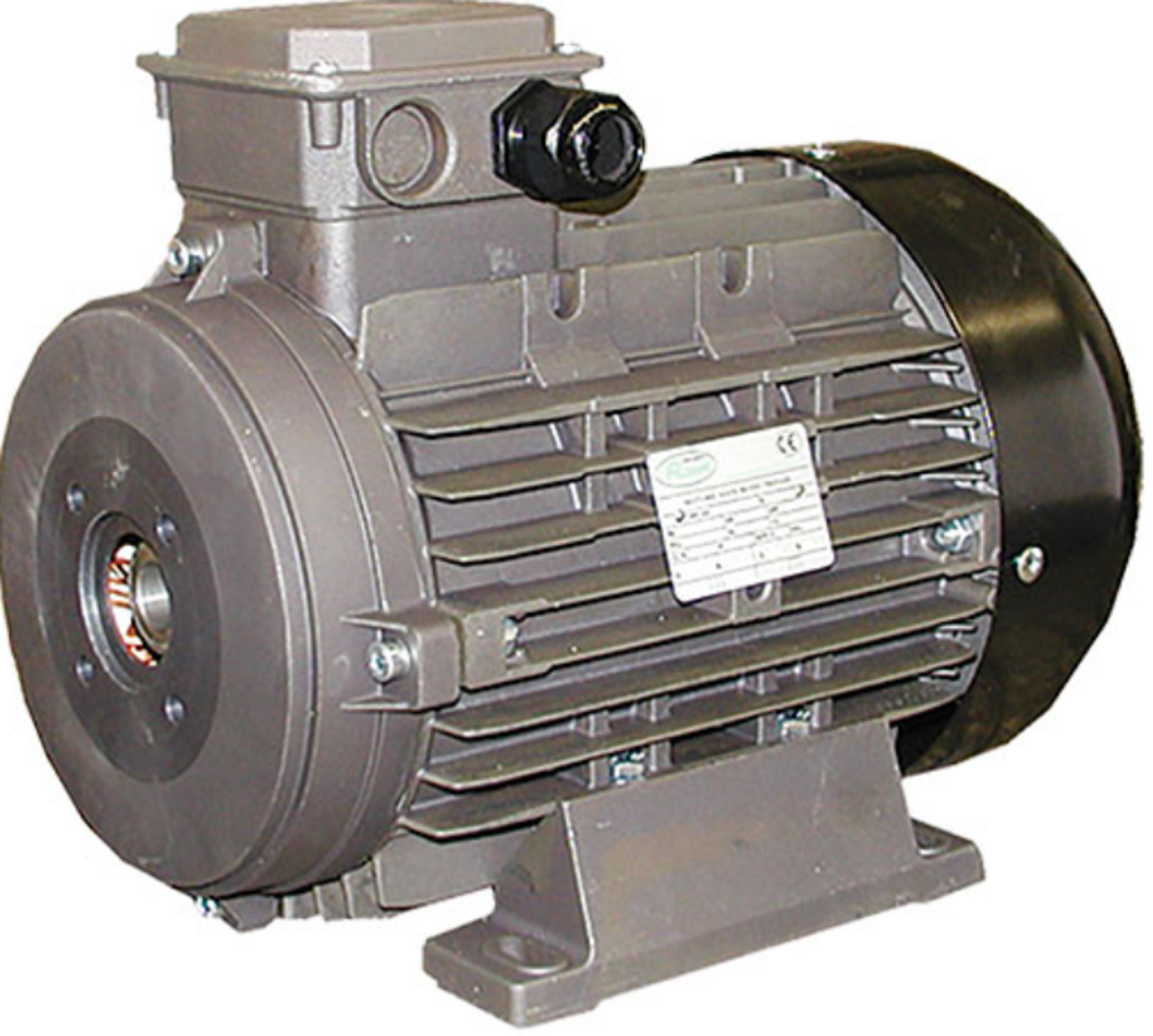

The R4123 Electric Motor is engineered for high-performance industrial applications. With a 7.5 HP output and running at 1750 RPM, this 3-phase motor operates at 220/380V and 60 Hz, delivering reliable power with an amp draw of 21/12.1 amps. It features a 24mm hollow shaft, an AR face mounting style, and a sturdy EIC 112M motor frame constructed from lightweight aluminum. Designed with a TEFC (Totally Enclosed Fan-Cooled) enclosure for enhanced protection and a service factor of 1.10–1.15, this motor is built to withstand demanding conditions while providing long-lasting performance.
|
 |
| Shaft Diameter |
24mm |
|---|---|
| Motor Face |
ar-face |
| Shaft Type |
Hollow |
| Voltage (v) |
220/380 |
| Ampre |
21/12.1 |
| Phase |
3 |
| Hertz (hz) |
60 |
| Max Hp |
7.5 |
| Max RPM |
1750 |
| Weight (lbs) |
88 |
| Motor Frame |
EIC 112M |
| Material |
Aluminum |
| Enclosure |
TEFC |
| Service Factor |
1.10-1.15 |
| Frame |
IEC 112M |
| Shaft Size |
24mm |
