Product Overview

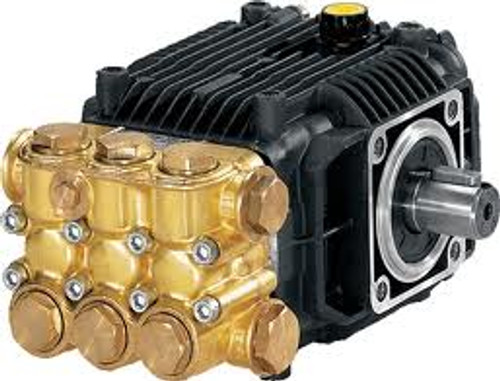

AR XM Series Pressure Washer Pumps are designed for a wide variety of high pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearings on the drive side, and ball on the non-drive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life.
This 1" Hollow Shaft Gas Engine Pump Package boasts 3.0 GPM performance @ 3200 PSI
Specifications:
- Shaft Size: 3/4" Hollow
- F24 - Gas Engine Flange
- Maximum RPM: 3400
- Maximum GPM: 3.0
- Maximum Pressure: 3200 PSI
- Power EBHP: 5.5
- Maximum Temperature: 140 F
- Bore Diameter: 15mm
- Stroke: 7.6mm
- Inlet Thread: 1/2" F
- Discharge Thread: 3/8" F
- Oil Capacity: 14.6 oz.
- Approximate Weight: 16.0 lbs.
