Product Overview

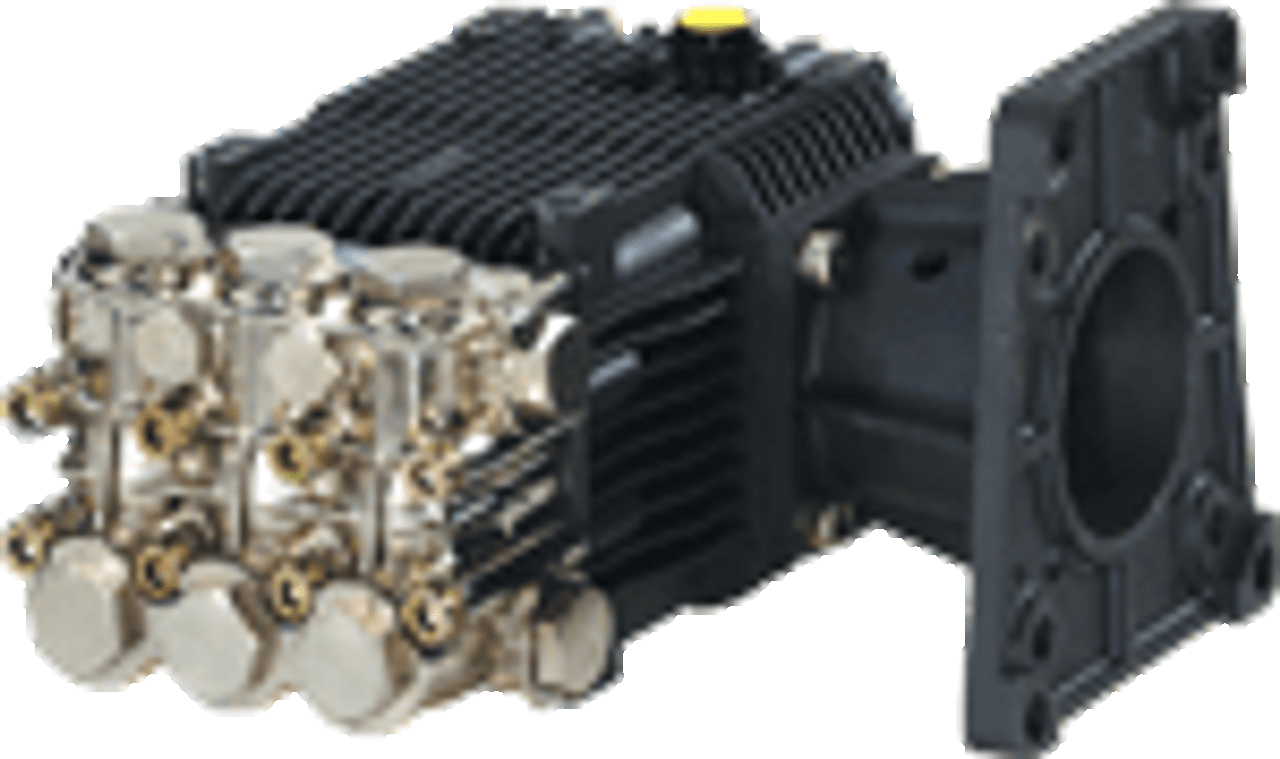

AR North America 3400 RPM Hollow Shaft Pump
Durable horizontal gas engine triplex plunger pump features a die-cast body and brass head. Thick solid ceramic plungers provide for long life for internal components, while anodized precision cast cooling fins optimize heat dissipation. One-piece connecting rods are made of special alloy aluminum, oversized for strength and load disbursement. Oversized needle bearing on the drive sides and ball bearings on the non-drive side for proper shaft alignment. Water tight valve cages allow positive seating provide longer life of your pump.
Features
- NEMA 56 Flange for easy connection to power supply.
- 1" hollow shaft
- 10 EBHP
Specifications
- Maximum Volume: 3.5 GPM
- Maximum Pressure: 4000 PSI
- Maximum Temperature: 140°F
- Inlet Port: 1/2" F
- Outlet Port: 3/8" F
