Product Description

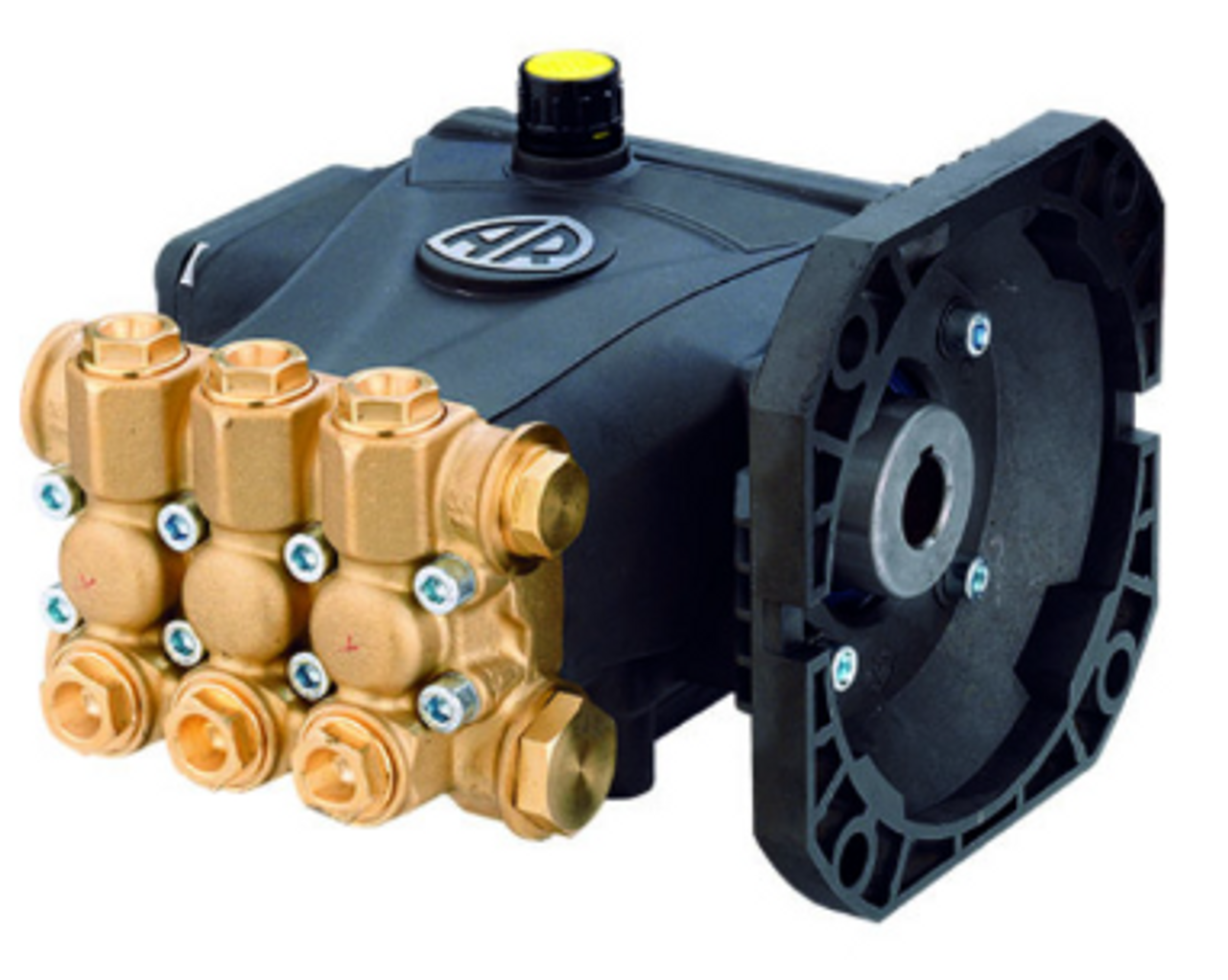

The Annovi Reverberi RCV25G27D-F8, D version 3/4" hollow shaft triplex pump is ready for direct mount. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RCV25G27D-F8 can produce up to 2700 Max PSI, 2.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RCV25G27D-F8 weighs 11 lbs and boasts a sleek compact design.
| Max GPM |
2.5 |
|---|---|
| Max Bar |
186 |
| Max PSI |
2700 |
| Power EBHP |
5.6 |
| Max RPM |
3400 |
| Weight (lbs) |
11 |
| Bore Diameter (mm) |
15 |
| Stroke mm |
5.6 |
| CSID Stamp |
9 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Capacity (oz) |
9.81 |
| Max Temp |
140° F |
| Flange |
F8 |
| Pump Orientation |
Horizontal |
| Shaft Type |
Hollow |
| Shaft Version |
D, Direct Gas |
| Shaft Diameter |
3/4" |
| Series |
320 (RCV) |
| Head Material |
brass |
| Connecting Rods |
aluminum |
| O-Ring |
buna |
| Max L/Min |
9.5 |
