Product Description

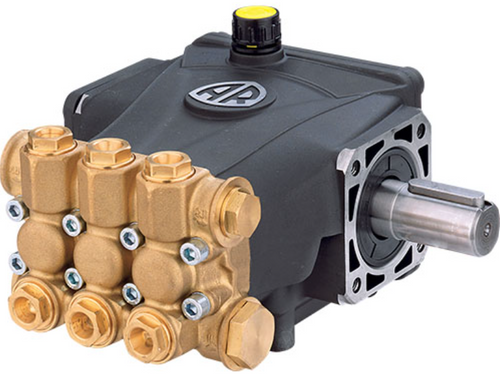

The Annovi Reverberi RC12.17N, N version 24mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RC12.17N can produce up to 2500 Max PSI, 3.2 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RC12.17N weighs in at 10 lbs and boasts a sleek compact design.
| Weight | 10 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Head Material |
brass |
| Connecting Rods |
aluminum |
| Max GPM |
3.2 |
| Max L/Min |
12 |
| Max PSI |
2500 |
| Max Bar |
170 |
| Power EBHP |
5.5 |
| Bore Dia mm |
18 |
| Stroke mm |
11.2 |
| CSID Stamp |
3 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
9.81 |
| RPM |
1450 |
| Shaft Size |
24mm |
| Shaft Version |
Neutral Shaft |
| Shaft Type |
Solid |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
