Product Description
Description

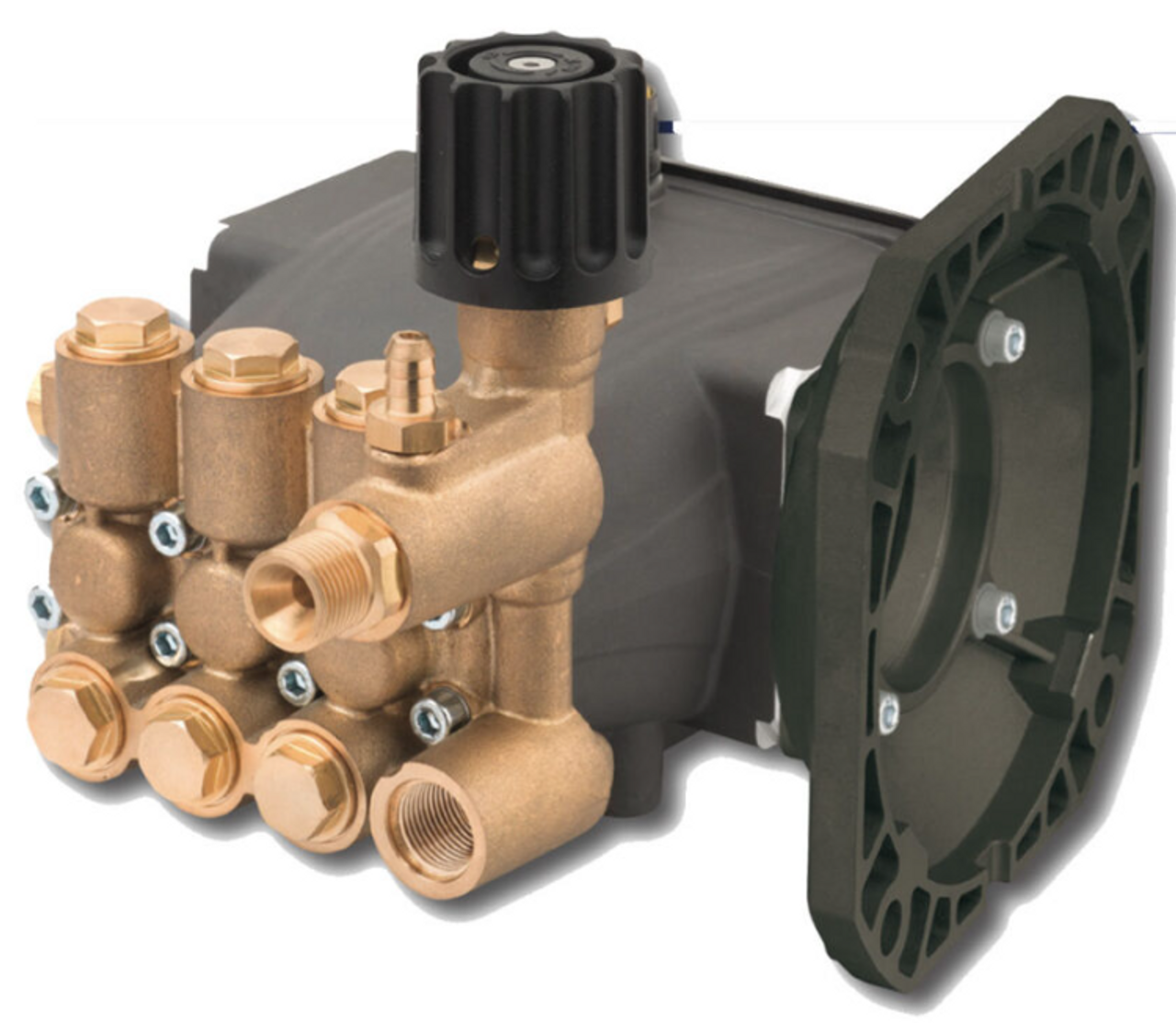

The Annovi Reverberi JRV3G20E-F8, E version 5/8" Hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The JRV3G20E-F8 can produce up to 2000 Max PSI, 3 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the JRV3G20E-F8 weighs in at 8.81 lbs and boasts a sleek compact design.
| Weight | 8.81 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Head Material |
brass |
| Connecting Rods |
aluminum |
| Max GPM |
3 |
| Max L/Min |
11.4 |
| Max PSI |
2000 |
| Max Bar |
140 |
| Power EBHP |
4.1 |
| Bore Dia mm |
12 |
| Stroke mm |
10.7 |
| CSID Stamp |
2 |
| Inlet (in) |
3/8" F |
| Outlet (in) |
3/8" M |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
5.43 |
| RPM |
3400 |
| Shaft Size |
5/8" |
| Shaft Version |
Electric Shaft |
| Shaft Type |
Hollow |
| Flange |
F8 |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
