Product Description

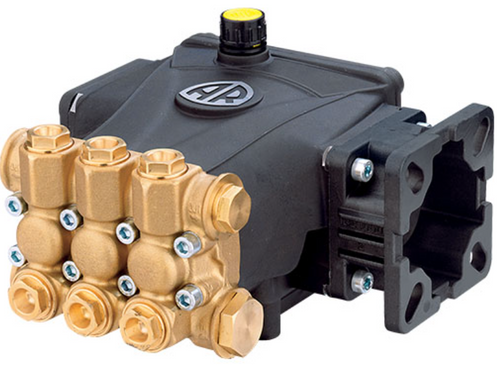

The Annovi Reverberi RCV3G30D-F7 D version 3/4" Hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RCV3G30D-F7 can produce up to 2700 Max PSI, 3 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RCV3G30D-F7 weighs in at 11 lbs and boasts a sleek compact design.
Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
|
Max GPM |
3 |
|
Max L/Min |
11.4 |
|
Max PSI |
2000 |
|
Max Bar |
140 |
|
Power EBHP |
5.6 |
|
Bore Dia. (mm) |
15 |
|
Stroke (mm) |
6.5 |
|
Shaft Size |
3/4” |
|
Inlet (in) |
1/2" F |
|
Discharge Thread (in) |
3/8” F |
|
Max Temp |
140° F |
|
Oil Capacity (oz.) |
9.81 |
|
Weight |
11 lbs. |
|
RPM |
3400 |
