Product Description
Description

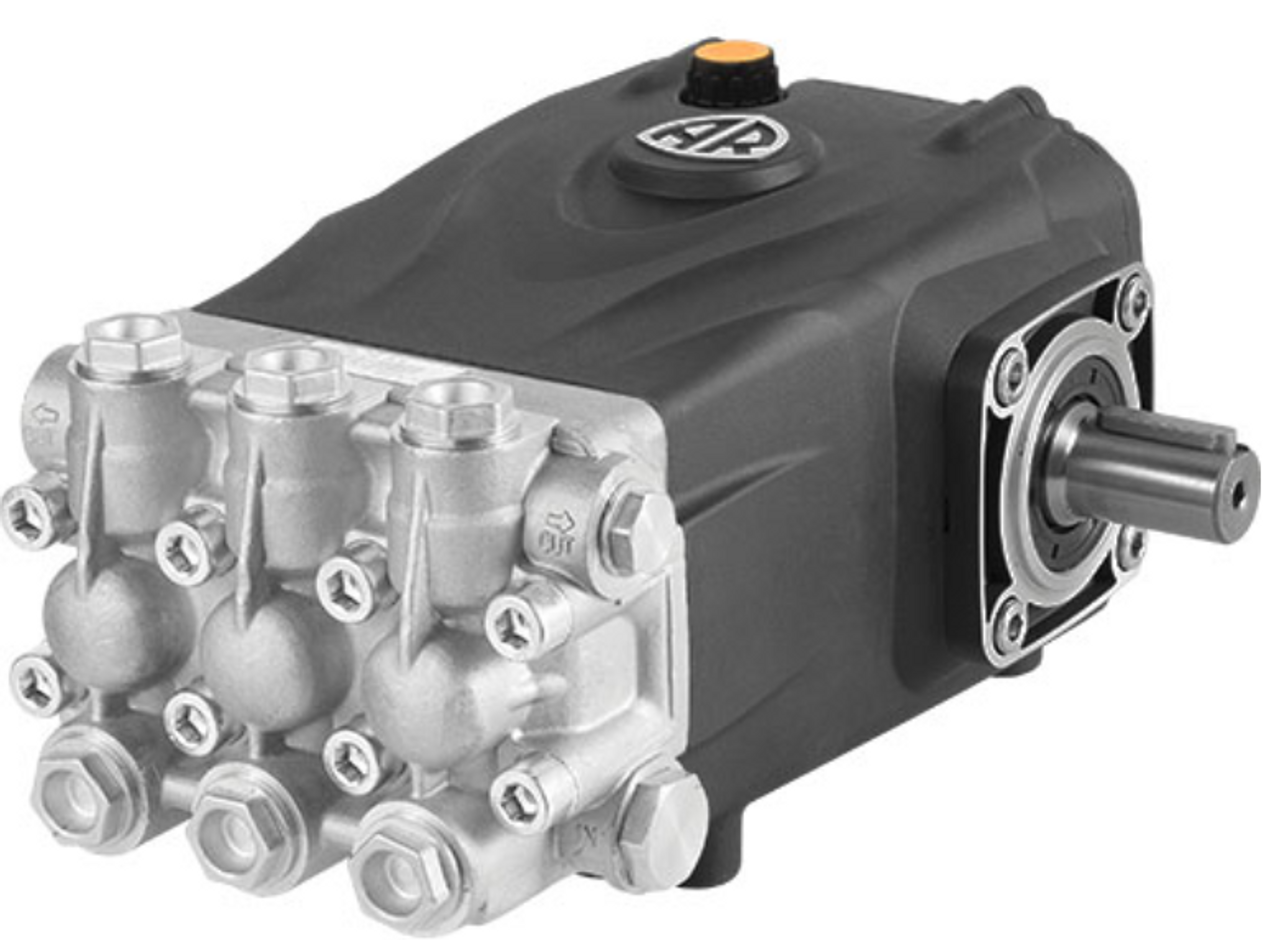

The Annovi Reverberi RG1528HN, N version 24x40mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a nickel plated brass pump head suitable for a wide range of conditions. The RG1528HN can produce up to 4000 Max PSI, 4 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RG1528HN weighs in at 27.5 lbs and boasts a sleek compact design.
| Weight | 27.5 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1450 |
| Weight (lbs) |
27.5 |
| Bore Diameter (mm) |
18 |
| Capacity (oz) |
32 |
| Shaft Diameter |
24 x 40 mm |
| Series |
402 (RG) |
| Head Material |
nickel plated brass |
| O-Ring |
buna |
| Connecting Rods |
aluminum |
| Max GPM |
4 |
| Max L/Min |
15 |
| Max PSI |
4000 |
| Max Bar |
280 |
| Power EBHP |
11 |
| Bore Dia mm |
18 |
| Stroke mm |
14.6 |
| CSID Stamp |
3 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
32 |
| RPM |
1450 |
| Shaft Size |
24x40mm |
| Shaft Version |
N, Natural, Neutral Shaft |
| Shaft Type |
Solid |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
