Product Description
Description

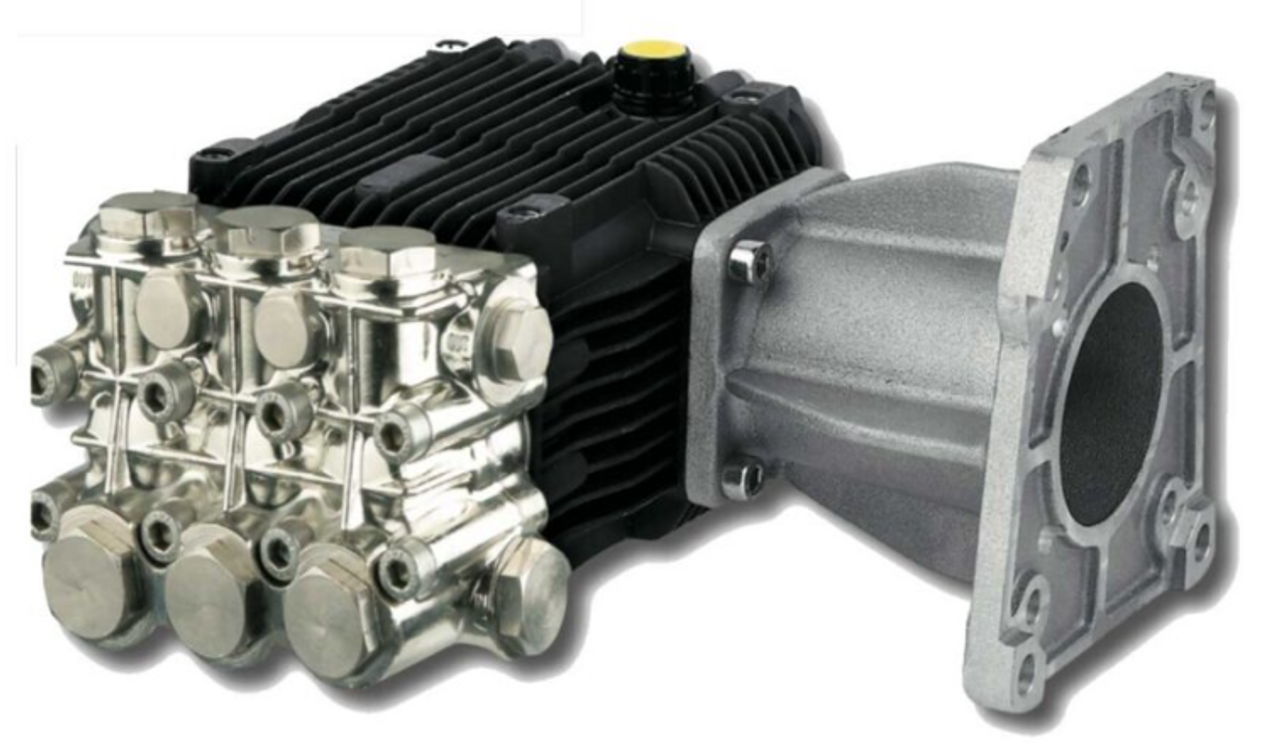

The Annovi Reverberi GRKV4G35HV-F35, V version 1" solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a nickel-plated brass pump head suitable for a wide range of conditions. The GRKV4G35HV-F35 can produce up to 3500 Max PSI, 4 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the GRKV4G35HV-F35 weighs in at 23 lbs and delivers the performance you demand.
| Weight | 23 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Head Material |
nickel plated brass |
| Connecting Rods |
aluminum |
| Max GPM |
4 |
| Max L/Min |
15.1 |
| Max PSI |
3500 |
| Max Bar |
240 |
| Power EBHP |
9.5 |
| Bore Dia mm |
18 |
| Stroke mm |
7 |
| CSID Stamp |
8 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
15 |
| RPM |
3400 |
| Shaft Size |
1" |
| Shaft Version |
Tapered Gas Engine Flange |
| Shaft Type |
Solid |
| Flange |
F35 |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
