Product Description
Description

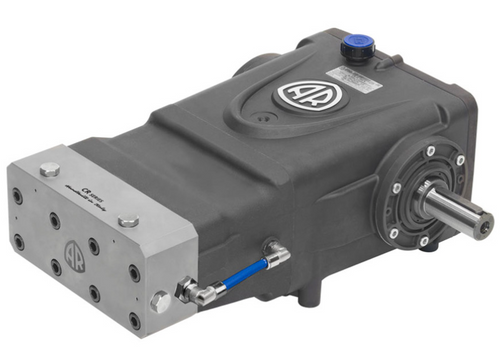

The Annovi Reverberi CR20-1000, N version 35 mm Solid shaft triplex pump is ready for direct mounting. This pump is manufactured with a stainless steel pump head suitable for a wide range of conditions. The CR20-1000 can produce up to 15,000 Max PSI, 5.3 Max GPM, and is designed to operate at 1000 RPM. Constructed with frictionless bronze connecting rods and ceramic pistons, the CR20-1000 weighs 136 lbs and delivers the performance you demand.
| Max GPM |
5.3 |
|---|---|
| Max Bar |
1000 |
| Max PSI |
15000 |
| Power EBHP |
54.4 |
| Max RPM |
1000 |
| Weight (lbs) |
136 |
| Bore Diameter (mm) |
14 |
| Stroke mm |
48 |
| CSID Stamp |
1 |
| Inlet (in) |
1-1/2" F |
| Outlet (in) |
1" F |
| Capacity (oz) |
137 |
| Max Temp |
140° F |
| Pump Orientation |
Horizontal |
| Shaft Type |
Solid |
| Shaft Version |
N, Natural |
| Shaft Diameter |
35 mm |
| Series |
418 (CR) |
| Head Material |
stainless steel |
| O-Ring |
viton |
| Max L/Min |
20 |
