Product Description

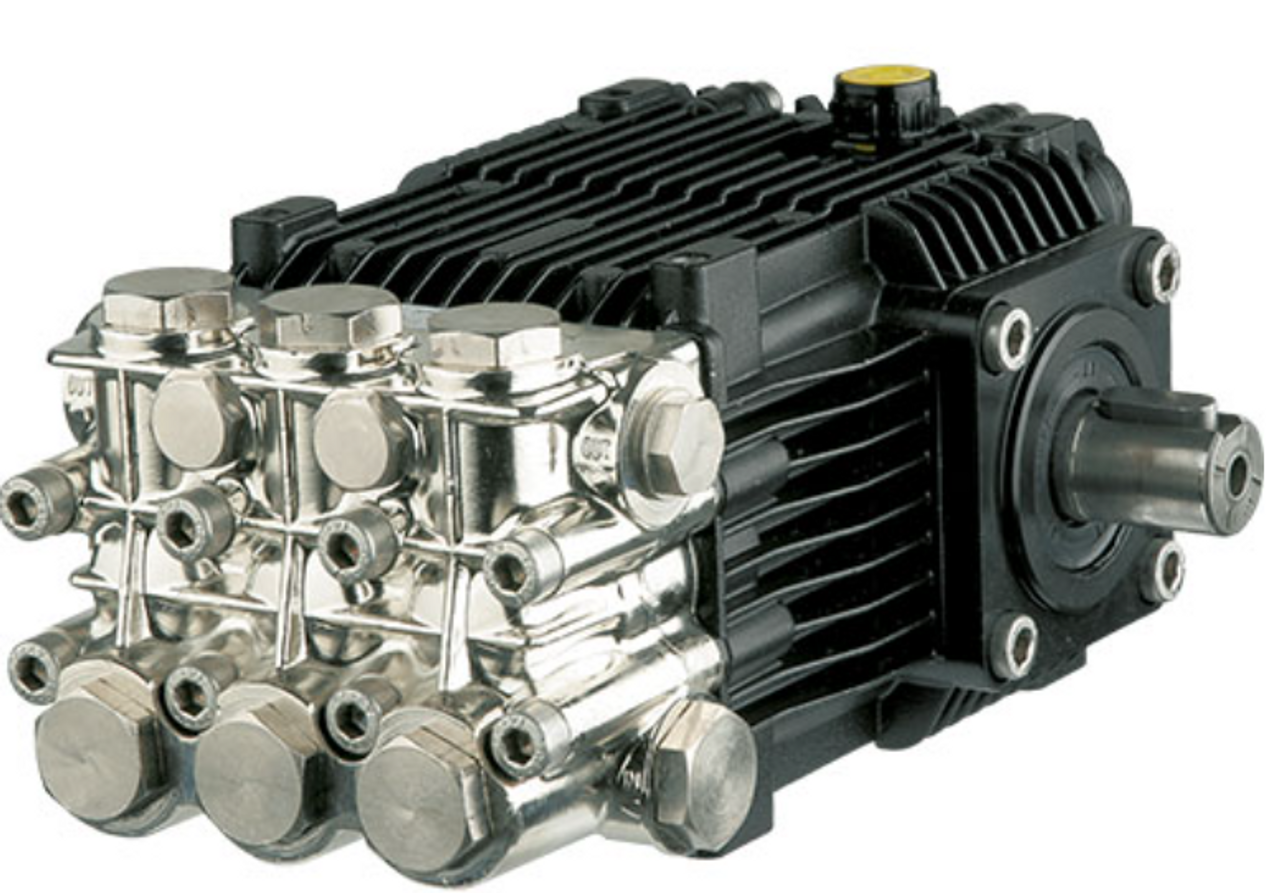

Annovi Reverberi / AR North America RK NL Version Pump with 24mm solid long shaft and 1,450 RPM. Used in a wide variety of high pressure washing applications. These pumps are designed for gearbox , belt drive, or coupling drive systems driven by electric motor or gasoline driven systems, gasoline engine driven systems
Features
• They are constructed of die-cast bodies and feature a forged brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life
• Valve cages of special designed Ultra-Form provide positive seating and extended life
• One-piece connecting rods are oversized for strength and load disbursement
Specifications
• Max. Volume: 5.55 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 1,450 RPM
• Shaft Diameter: 24mm Solid (long shaft)
• Shaft Length: 45mm (1.77")
• Maximum Horsepower Requirements: 11.0 EBHP
• Max. Fluid Temp.: 140º F.
• Inlet Ports (2): 1/2" FPT
• Discharge Ports (2): 3/8" FPT
• Drive Side: Standard right
• Weight: 20.0 lb
