Product Description

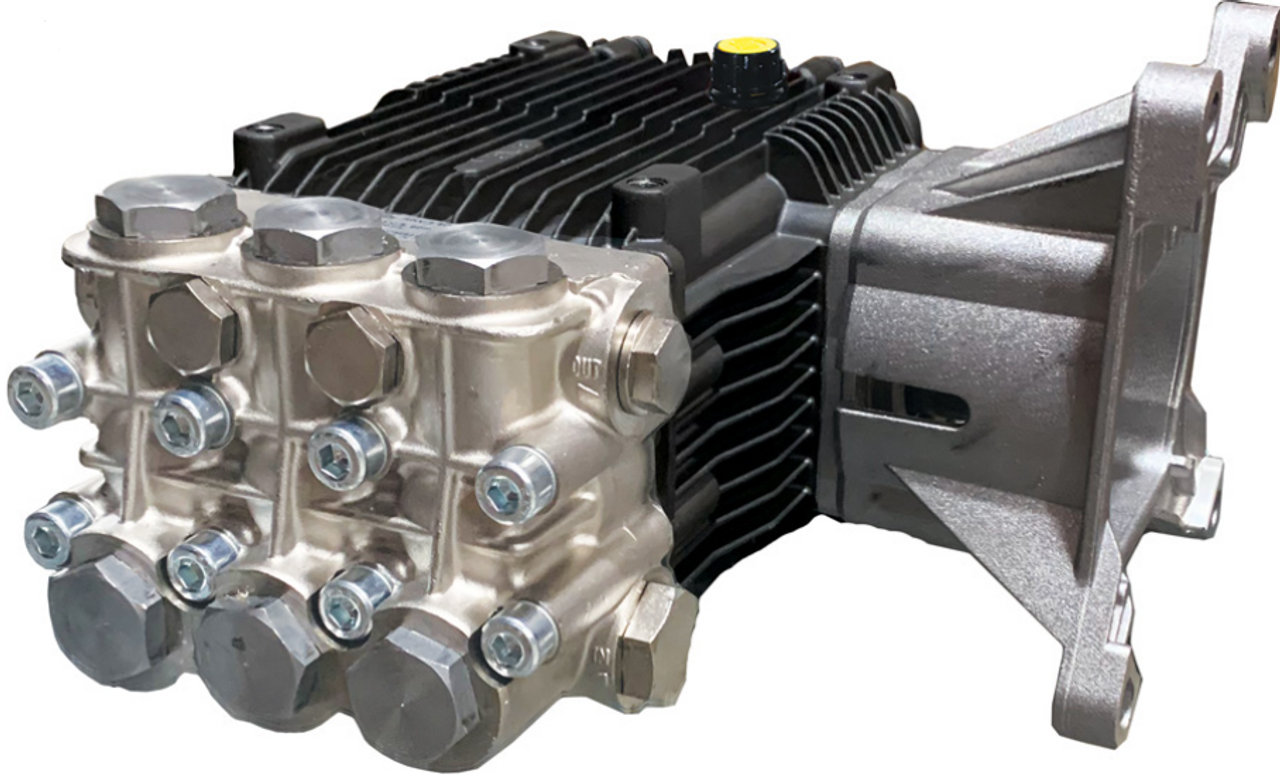

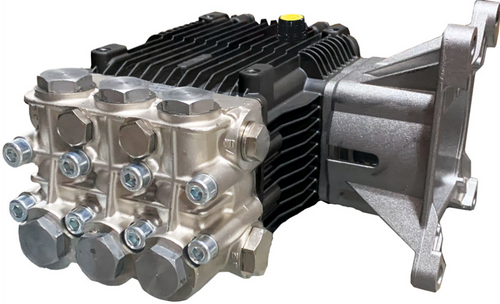

The Annovi Reverberi RKV45G40HD-F24, F version 1" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a nickel plated brass pump head suitable for a wide range of conditions. The RKV45G40HD-F24 can produce up to 4000 Max PSI, 4.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless bronze connecting rods and ceramic pistons, the RKV45G40HD-F24 weighs in at 21 lbs and boasts a sleek compact design.
| Weight | 21 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
3400 |
| Weight (lbs) |
21 |
| Bore Diameter (mm) |
18 |
| Capacity (oz) |
15 |
| Shaft Diameter |
24 mm |
| Series |
228 (RKV) |
| Head Material |
nickel plated brass |
| O-Ring |
buna |
| Connecting Rods |
aluminum, bronze |
| Max GPM |
4.5 |
| Max L/Min |
17 |
| Max PSI |
4000 |
| Max Bar |
275 |
| Power EBHP |
12.4 |
| Bore Dia mm |
18 |
| Stroke mm |
8 |
| CSID Stamp |
7 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
15 oz |
| RPM |
3400 |
| Shaft Size |
1" |
| Shaft Version |
D, Direct Gas, Direct Gas Shaft, N, Natural |
| Shaft Type |
Hollow, Solid |
| Flange |
F24 |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
