Product Description

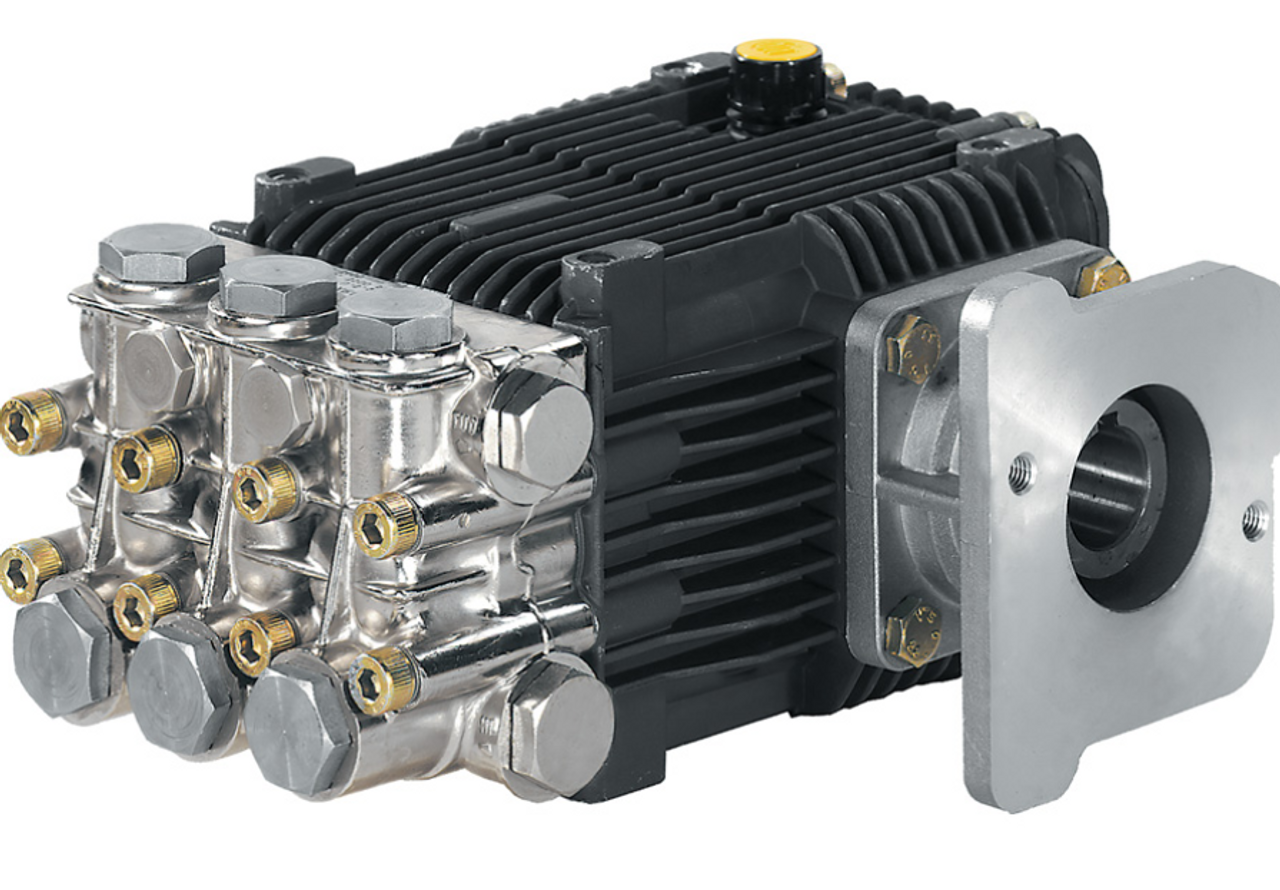

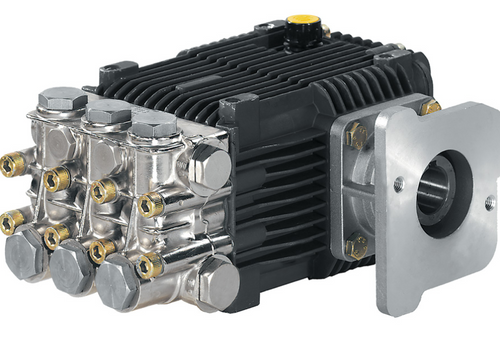

The Annovi Reverberi RKA4G40HJ-F22, J version 1" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a nickel plated brass pump head suitable for a wide range of conditions. The RKA4G40HJ-F22 can produce up to 4000 Max PSI, 4 Max GPM, and is designed to operate at 1750 RPM. Constructed with frictionless bronze connecting rods and ceramic pistons, the RKA4G40HJ-F22 weighs in at 20 lbs and delivers the performance you demand.
| Weight | 20 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1750 |
| Weight (lbs) |
20 |
| Bore Diameter (mm) |
18 |
| Capacity (oz) |
15 |
| Shaft Diameter |
25mm |
| Series |
228 (RKA) |
| Head Material |
nickel plated brass |
| Connecting Rods |
bronze |
| Max GPM |
4 |
| Max L/Min |
15.1 |
| Max PSI |
4000 |
| Max Bar |
275 |
| Power EBHP |
11 |
| Bore Dia mm |
18 |
| Stroke mm |
12 |
| CSID Stamp |
4 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
15 oz |
| RPM |
1750 |
| Shaft Size |
25mm |
| Shaft Version |
Internal Gear Box, J, Internal Gear |
| Flange |
F22 |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
