Product Description

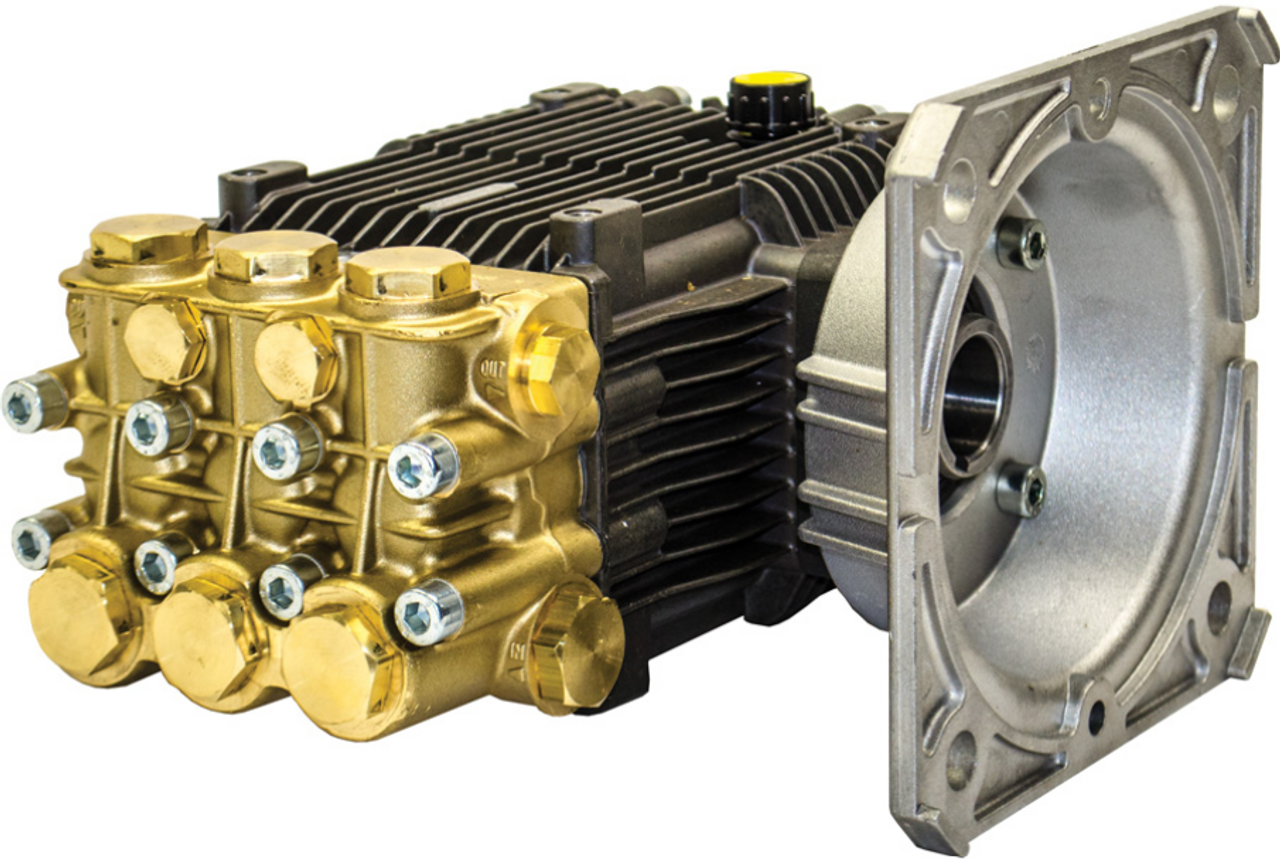

The Annovi Reverberi RKA55G13E-F17, E version 1-1/8" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RKA55G13E-F17 can produce up to 2000 Max PSI, 5.5 Max GPM, and is designed to operate at 1750 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RKA55G13E-F17 weighs in at 21 lbs and boasts a sleek compact design.
| Weight | 21 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1750 |
| Weight (lbs) |
21 |
| Bore Diameter (mm) |
20 |
| Capacity (oz) |
15 |
| Shaft Diameter |
24 mm |
| Series |
228 (RKA) |
| Head Material |
brass |
| O-Ring |
buna |
| Connecting Rods |
aluminum, bronze |
| Max GPM |
5.5 |
| Max L/Min |
20.8 |
| Max PSI |
2000 |
| Max Bar |
138 |
| Power EBHP |
7.5 |
| Bore Dia mm |
20 |
| Stroke mm |
13.8 |
| CSID Stamp |
2 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
15 oz |
| RPM |
1750 |
| Shaft Size |
1-1/8" |
| Shaft Version |
E, Electric, Electric Shaft, N, Natural |
| Shaft Type |
Hollow, Solid |
| Flange |
F17 |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
