Product Description

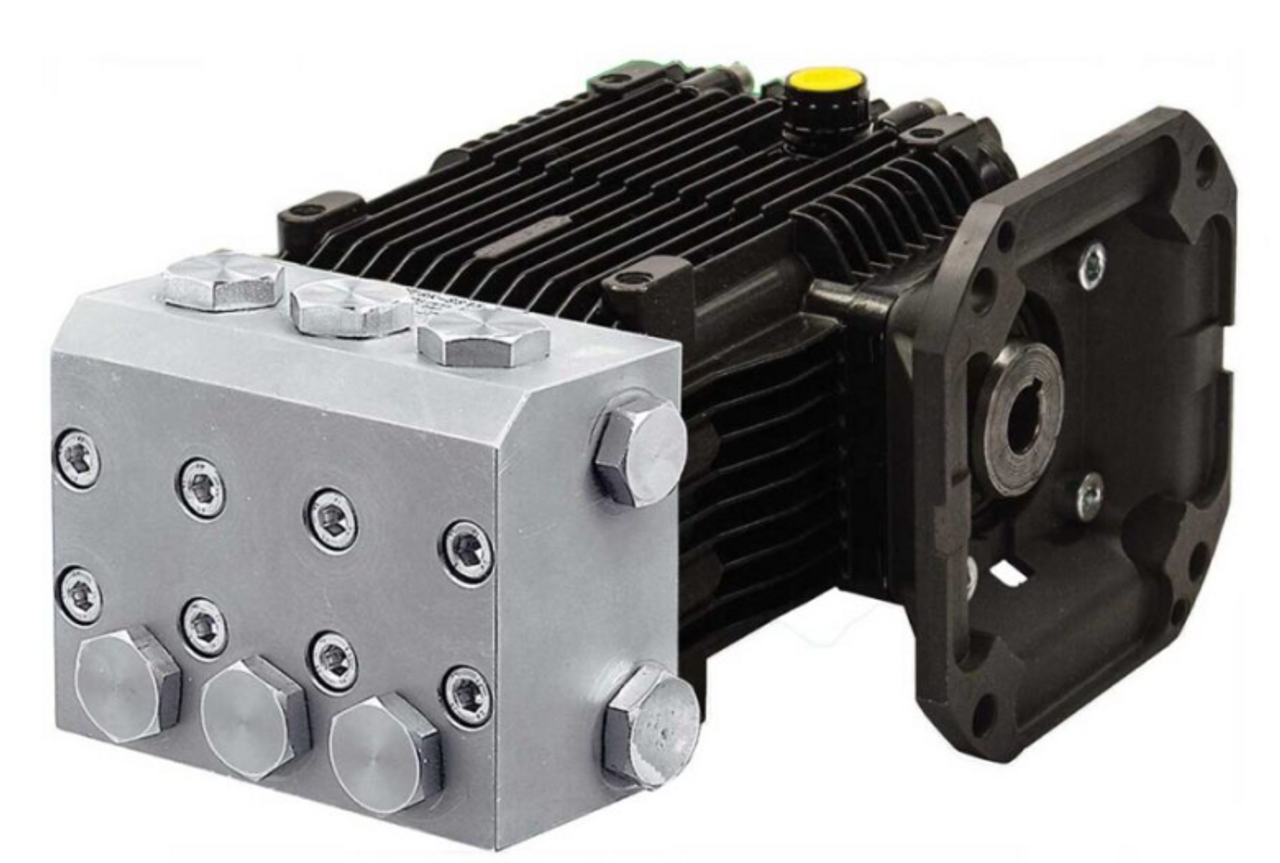

The Annovi Reverberi RKASS3G15E-F33 is a horizontal triplex plunger pump engineered for specialty and industrial applications. Designed with a durable stainless steel head for maximum corrosion resistance, this pump delivers up to 3 GPM at pressures reaching 3000 PSI. It operates at 1750 RPM and features a 5/8" hollow electric shaft with an F33 flange. The RKASS3G15E-F33 is built for easy integration with a ½” F inlet and a 3/8” F outlet, making it a strong and dependable choice for high-pressure tasks. With a maximum temperature rating of 140°F and a 15 oz oil capacity, this pump is ready to handle tough jobs while maintaining long service life. Weighing just 22 lbs, it offers a lightweight yet robust solution for demanding environments.
| Weight | 22 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1750 |
| Weight (lbs) |
22 |
| Bore Diameter (mm) |
18 |
| Capacity (oz) |
15 |
| Shaft Diameter |
5/8" |
| Series |
228 (RKA) |
| Head Material |
stainless steel, Stainless_Steel |
| Max GPM |
3 |
| Max L/Min |
11.4 |
| Max PSI |
3000 |
| Max Bar |
200 |
| Power EBHP |
6.2 |
| Bore Dia mm |
18 |
| Stroke mm |
9.8 |
| CSID Stamp |
6 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
15 oz |
| RPM |
1750 |
| Shaft Size |
5/8" |
| Shaft Version |
E, Electric, Electric Shaft |
| Shaft Type |
Hollow |
| Specialty |
Stainless Steel |
| Flange |
F33 |
| Market |
Specialty |
| Pump Type |
Tri-Plex Plunger |
