Product Description

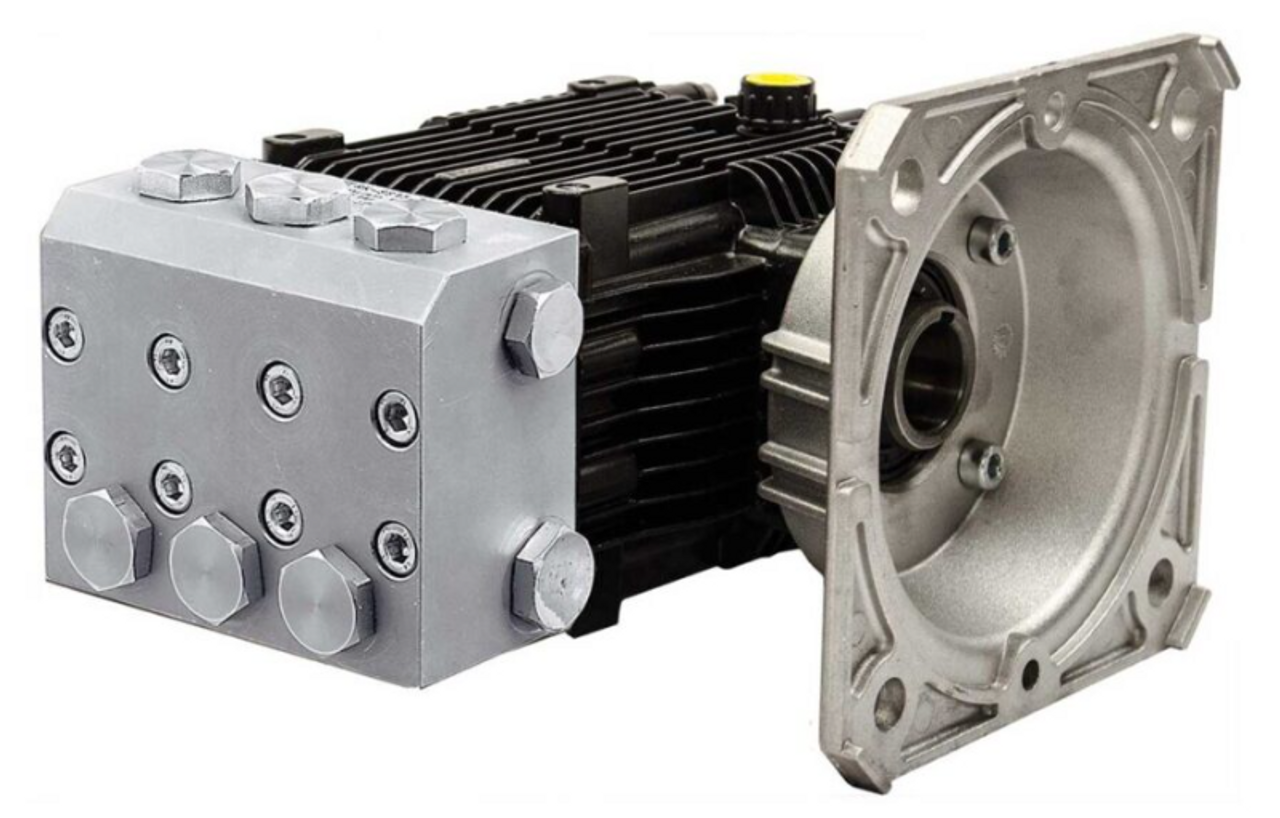

The Annovi Reverberi RKASS42G15E-F17 brings reliable high-performance pumping to specialty applications, offering a flow rate of up to 4.2 GPM at 3000 PSI. This horizontal triplex plunger pump features a stainless steel head for exceptional corrosion resistance and utilizes a 1-1/8" hollow electric shaft with an F17 flange, operating smoothly at 1750 RPM. Designed with a ½” F inlet and a 3/8” F outlet, it provides easy integration into existing systems. Capable of handling temperatures up to 140°F and supported by a 15 oz oil capacity, the RKASS42G15E-F17 delivers a durable and lightweight (22 lbs) solution for high-pressure, high-performance environments.
| Weight | 22 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1750 |
| Weight (lbs) |
22 |
| Bore Diameter (mm) |
18 |
| Capacity (oz) |
15 |
| Shaft Diameter |
1-1/8" |
| Series |
228 (RKA) |
| Head Material |
stainless steel, Stainless_Steel |
| Max GPM |
4.2 |
| Max L/Min |
15.9 |
| Max PSI |
3000 |
| Max Bar |
200 |
| Power EBHP |
8.6 |
| Bore Dia mm |
18 |
| Stroke mm |
12 |
| CSID Stamp |
4 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
15 oz |
| RPM |
1750 |
| Shaft Size |
1-1/8" |
| Shaft Version |
E, Electric, Electric Shaft |
| Shaft Type |
Hollow |
| Specialty |
Stainless Steel |
| Flange |
F17 |
| Market |
Specialty |
| Pump Type |
Tri-Plex Plunger |
