Product Description

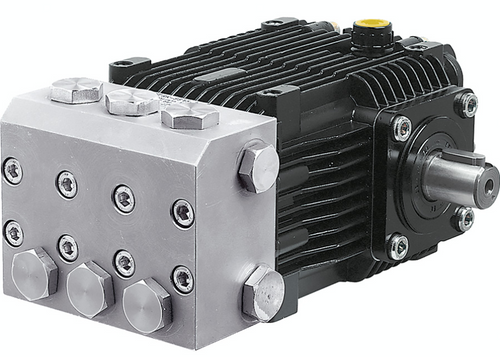

The Annovi Reverberi RKSS11.11N horizontal triplex plunger pump is engineered for specialty applications requiring consistent performance and superior durability. Delivering up to 2.9 GPM at a maximum pressure of 3000 PSI, this pump operates at 1450 RPM with a 24mm solid shaft. Designed with a stainless steel head for corrosion resistance, it features a ½” F inlet and 3/8” F outlet for smooth system integration. With a maximum temperature rating of 140°F and a 15 oz oil capacity, the RKSS11.11N is a dependable choice for high-performance environments, all while maintaining a lightweight profile at 22 lbs.
| Weight | 22 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1450 |
| Weight (lbs) |
22 |
| Bore Diameter (mm) |
18 |
| Capacity (oz) |
15 |
| Shaft Diameter |
24mm |
| Series |
228 (RK) |
| Head Material |
stainless steel, Stainless_Steel |
| Max GPM |
2.9 |
| Max L/Min |
11 |
| Max PSI |
3000 |
| Max Bar |
200 |
| Power EBHP |
6 |
| Bore Dia mm |
18 |
| Stroke mm |
10.8 |
| CSID Stamp |
5 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
15 oz |
| RPM |
1450 |
| Shaft Size |
24mm |
| Shaft Version |
N, Natural, Neutral Shaft |
| Shaft Type |
Solid |
| Specialty |
Stainless Steel |
| Market |
Specialty |
| Pump Type |
Tri-Plex Plunger |
