Product Description

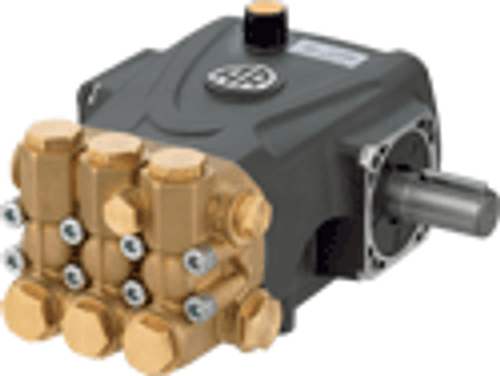

The Annovi Reverberi RR15.25HN, N version 24mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RR15.25HN can produce up to 3600 Max PSI, 4 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RR15.25HN weighs in at 17 lbs and boasts a sleek compact design.
| Weight | 17 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1450 |
| Weight (lbs) |
17 |
| Bore Diameter (mm) |
18 |
| Capacity (oz) |
13.35 |
| Shaft Diameter |
24mm |
| Series |
322 (RR) |
| Head Material |
brass |
| Connecting Rods |
aluminum |
| Max GPM |
4 |
| Max L/Min |
15 |
| Max PSI |
3600 |
| Max Bar |
250 |
| Power EBHP |
10 |
| Bore Dia mm |
18 |
| Stroke mm |
13.8 |
| CSID Stamp |
2 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
13.35 |
| RPM |
1450 |
| Shaft Size |
24mm |
| Shaft Version |
N, Natural, Neutral Shaft |
| Shaft Type |
Solid |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
