Product Description

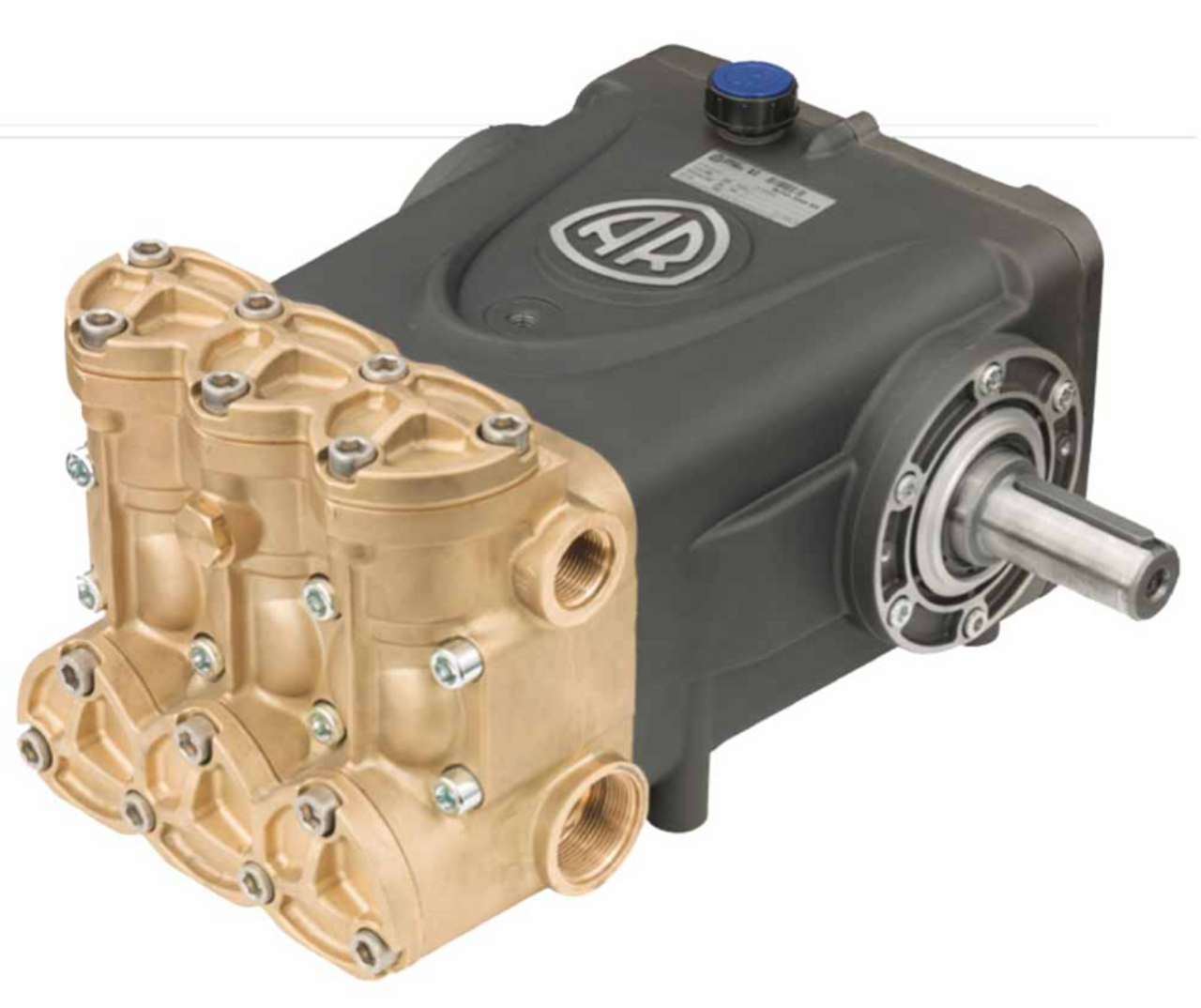

The Annovi Reverberi RTD100-200SX, N version 35MM solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RTD100-200SX can produce up to 2900 Max PSI, 25 Max GPM, and is designed to operate at 1000 RPM. Constructed with frictionless bronze connecting rods and ceramic pistons, the RTD100-200SX weighs in at 128 lbs and delivers the performance you demand.
| Weight | 128 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1000 |
| Weight (lbs) |
128 |
| Bore Diameter (mm) |
32 |
| Capacity (oz) |
110 |
| Shaft Diameter |
35mm |
| Series |
418 (RTD) |
| Head Material |
brass |
| Connecting Rods |
bronze |
| Max GPM |
25 |
| Max L/Min |
94.6 |
| Max PSI |
2900 |
| Max Bar |
200 |
| Power EBHP |
49.8 |
| Bore Dia mm |
32 |
| Stroke mm |
42 |
| CSID Stamp |
3 |
| Inlet (in) |
1 1/2" |
| Outlet (in) |
1" |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
110oz |
| RPM |
1000 |
| Shaft Size |
35mm |
| Shaft Version |
N, Natural, Neutral Shaft |
| Shaft Type |
Solid |
| Market |
Industrial |
| Pump Type |
Tri-Plex Plunger |
