Product Description

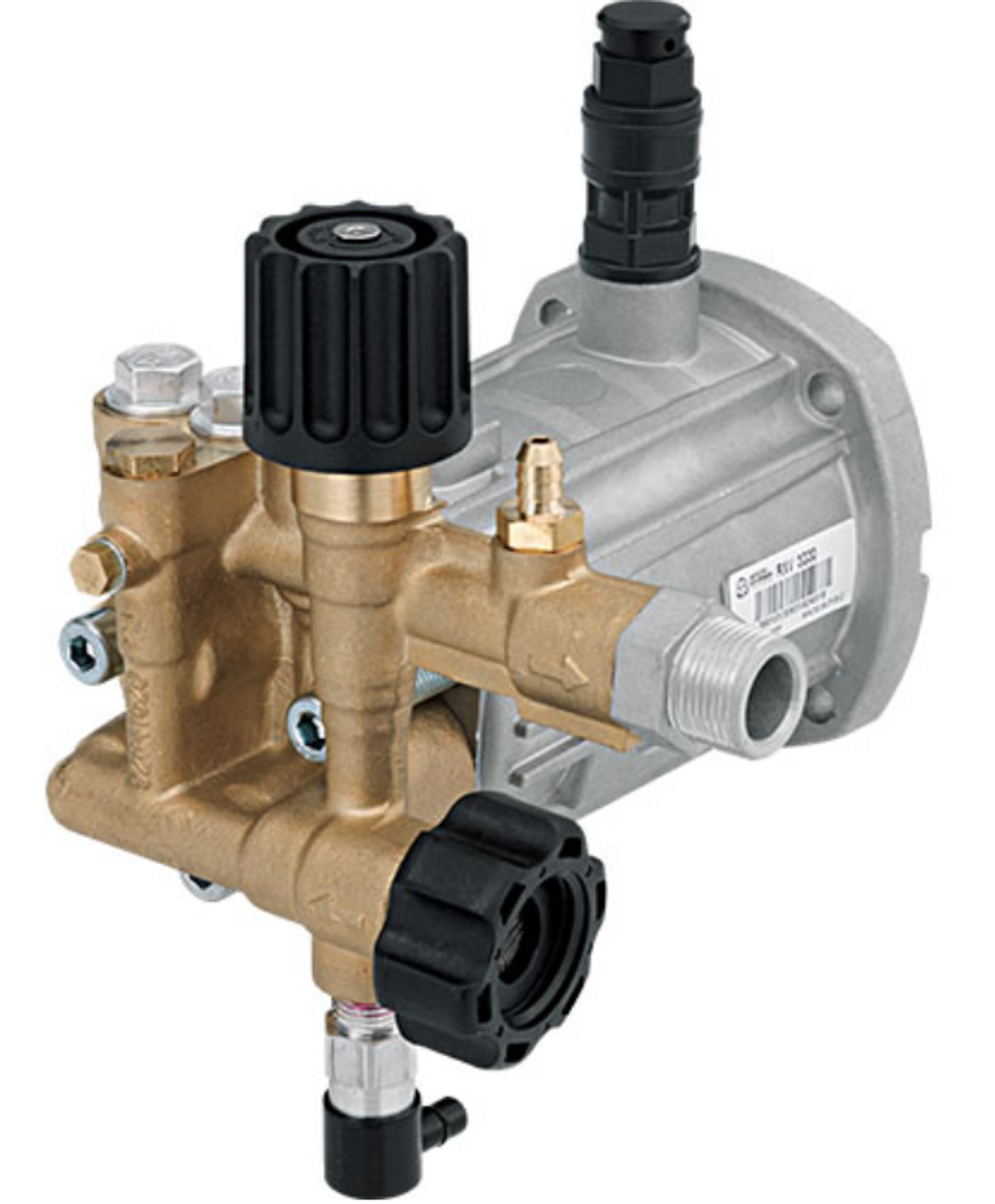

The Annovi Reverberi RXV27G30D-EZ, D version 3/4" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RXV27G30D-EZ can produce up to 3000 Max PSI, 2.7 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RXV27G30D-EZ weighs in at 8.8 lbs and boasts a sleek compact design.
| Weight | 8.8 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
3400 |
| Weight (lbs) |
8.8 |
| Bore Diameter (mm) |
14 |
| Capacity (oz) |
3.35 |
| Shaft Diameter |
3/4" |
| Series |
wobble plate |
| Head Material |
brass |
| O-Ring |
buna |
| Connecting Rods |
aluminum |
| Max GPM |
2.7 |
| Max L/Min |
10.2 |
| Max PSI |
3000 |
| Max Bar |
205 |
| Power EBHP |
5.6 |
| Bore Dia mm |
14 |
| Stroke mm |
6.88 |
| CSID Stamp |
5 |
| Inlet (in) |
3/4" GHA |
| Outlet (in) |
22mmx1.4 M |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
3.35 |
| RPM |
3400 |
| Shaft Size |
3/4" |
| Shaft Version |
D, Direct Gas, Direct Gas Shaft |
| Shaft Type |
Hollow |
| Market |
Residential |
| Pump Type |
Axial Radial |
