Product Description

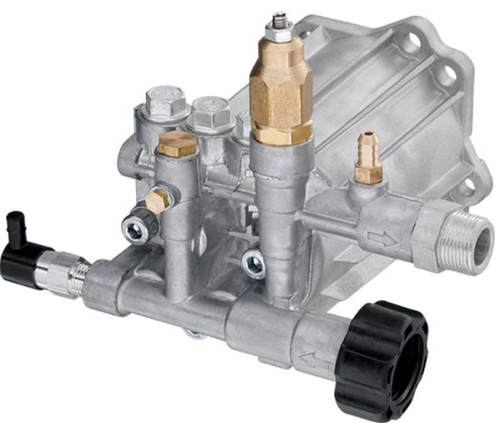

The Annovi Reverberi SRMV24G28D-EZ, D version 3/4" Hollow shaft triplex pump is ready for direct mount. This pump is manufactured with an aluminum pump head suitable for a wide range of conditions. The SRMV24G28D-EZ can produce up to 2800 Max PSI, 2.4 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless steel connecting rods and ceramic pistons, the SRMV24G28D-EZ weighs 7.5 lbs and boasts a sleek compact design.
| Max GPM |
2.4 |
|---|---|
| Max Bar |
193 |
| Max PSI |
2800 |
| Power EBHP |
4.6 |
| Max RPM |
3400 |
| Weight (lbs) |
7.5 |
| Bore Diameter (mm) |
12 |
| Stroke mm |
9 |
| CSID Stamp |
3 |
| Inlet (in) |
3/4 GHA |
| Outlet (in) |
22mmx14mm |
| Capacity (oz) |
2.2 |
| Max Temp |
140° F |
| Shaft Type |
Hollow |
| Shaft Version |
D, Direct Gas |
| Shaft Diameter |
3/4" |
| Series |
wobble plate |
| Head Material |
aluminum |
| Connecting Rods |
steel |
| O-Ring |
buna |
| Max L/Min |
9.1 |
