Product Description

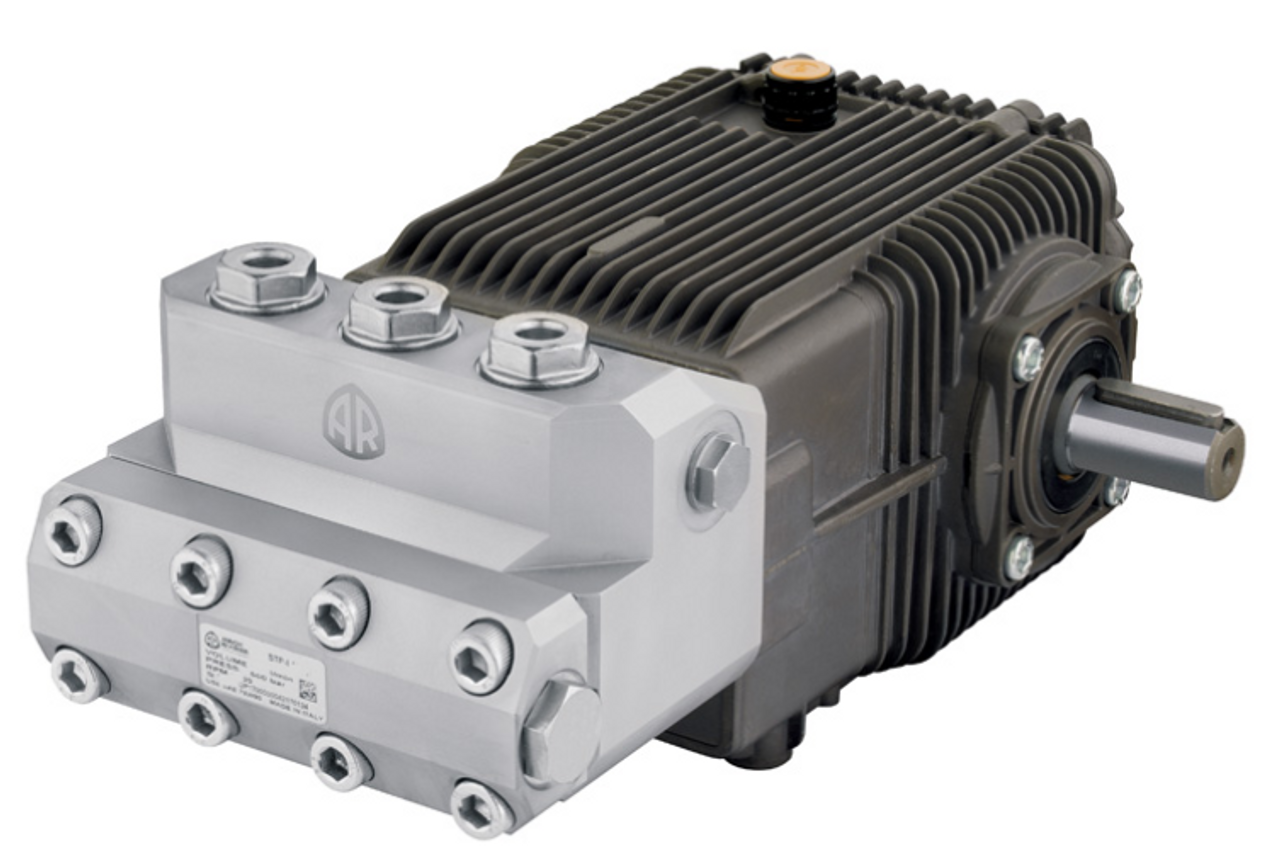

The Annovi Reverberi STPA-SS55G70N, N version 24 mm Solid shaft triplex pump is ready for direct mounting. This pump is manufactured with a stainless steel-420 pump head suitable for a wide range of conditions. The STPA-SS55G70N can produce up to 7250 Max PSI, 5.5 Max GPM, and is designed to operate at 1750 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the STPA-SS55G70N weighs 41 lbs and delivers the performance you demand.
| Max GPM |
5.5 |
|---|---|
| Max Bar |
500 |
| Max PSI |
7250 |
| Power EBHP |
27.4 |
| Max RPM |
1750 |
| Weight (lbs) |
41 |
| Bore Diameter (mm) |
18 |
| Stroke mm |
17.2 |
| CSID Stamp |
2 |
| Inlet (in) |
1/2" |
| Outlet (in) |
3/8" |
| Capacity (oz) |
32 |
| Max Temp |
140° F |
| Pump Orientation |
Horizontal |
| Shaft Type |
Solid |
| Shaft Version |
N, Natural |
| Shaft Diameter |
24 mm |
| Series |
194 (STP) |
| Head Material |
stainless steel |
| Connecting Rods |
aluminum |
| O-Ring |
buna |
| Max L/Min |
20.8 |
