Product Description

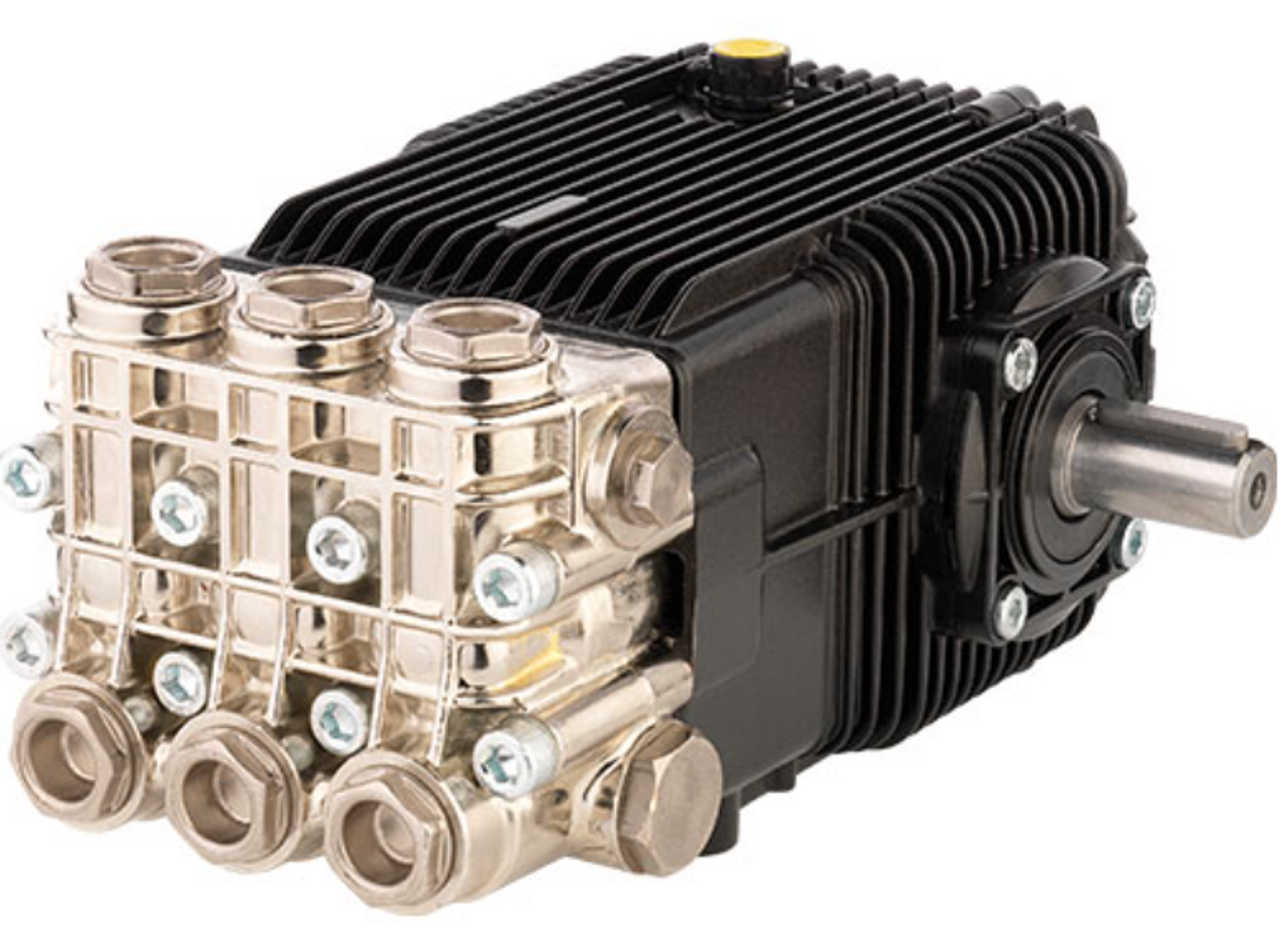

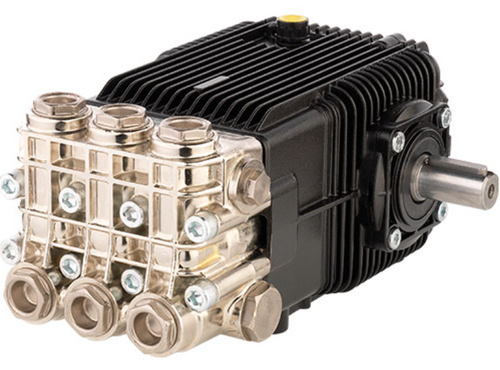

The Annovi Reverberi WHW2115N, N version 24 mm Solid shaft triplex pump is ready for direct mounting. This pump is manufactured with a nickel plated brass pump head suitable for a wide range of conditions. The WHW2115N can produce up to 2200 Max PSI, 5.55 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the WHW2115N weighs 37 lbs and delivers the performance you demand.
| Weight | 37 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1450 |
| Weight (lbs) |
37 |
| Bore Diameter (mm) |
22 |
| Capacity (oz) |
32 |
| Shaft Diameter |
24mm |
| Series |
228 (RHW) |
| Max GPM |
5.55 |
| Max L/Min |
22 |
| Max PSI |
2200 |
| Max Bar |
150 |
| Power EBHP |
8.3 |
| Bore Dia mm |
22 |
| Stroke mm |
13.8 |
| CSID Stamp |
4 |
| Inlet (in) |
3/4" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F, 180° F |
| Oil Capacity (oz.) |
32 |
| RPM |
1450 |
| Shaft Size |
24mm |
| Shaft Version |
N, Natural, Neutral Shaft |
| Shaft Type |
Solid |
| Specialty |
Hot Water |
| Market |
Specialty |
| Pump Type |
Tri-Plex Plunger |
