Product Description

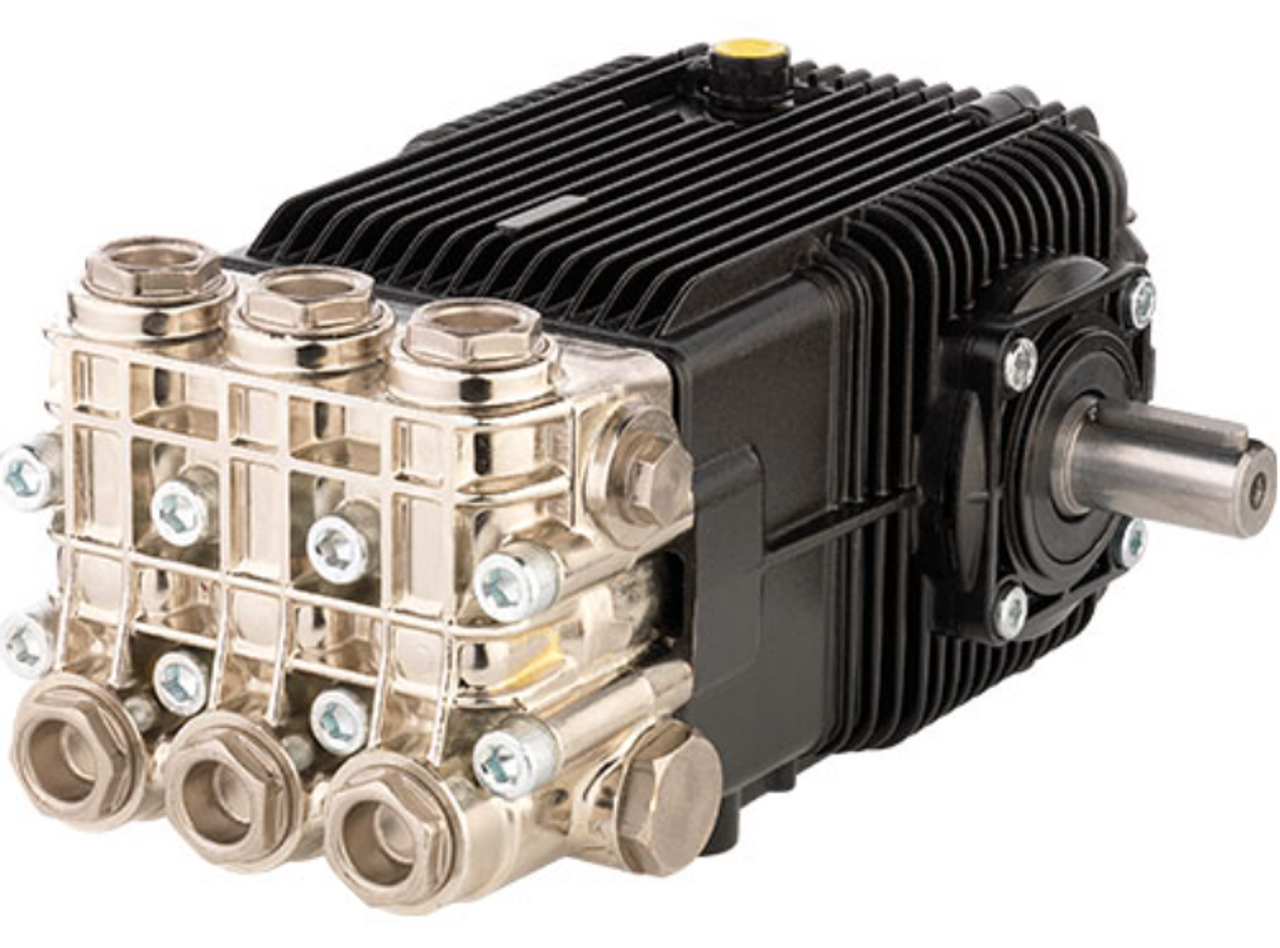

The Annovi Reverberi WHW3220N, N version 24 mm Solid shaft triplex pump is ready for direct mounting. This pump is manufactured with a nickel plated brass pump head suitable for a wide range of conditions. The WHW3220N can produce up to 3000 Max PSI, 8 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the WHW3220N weighs 37 lbs and delivers the performance you demand.
- Belt drive
- 8.0 GPM
- 3000 PSI
- 1450 RPM
- 22 mm bore diameter
- 19.8 mm stroke
- 3/4″ F inlet thread
- 3/8″ F discharge thread
- 32 oz. oil capacity
- 180° f maximum water temperature
- Nickel plated brass head
