Product Description

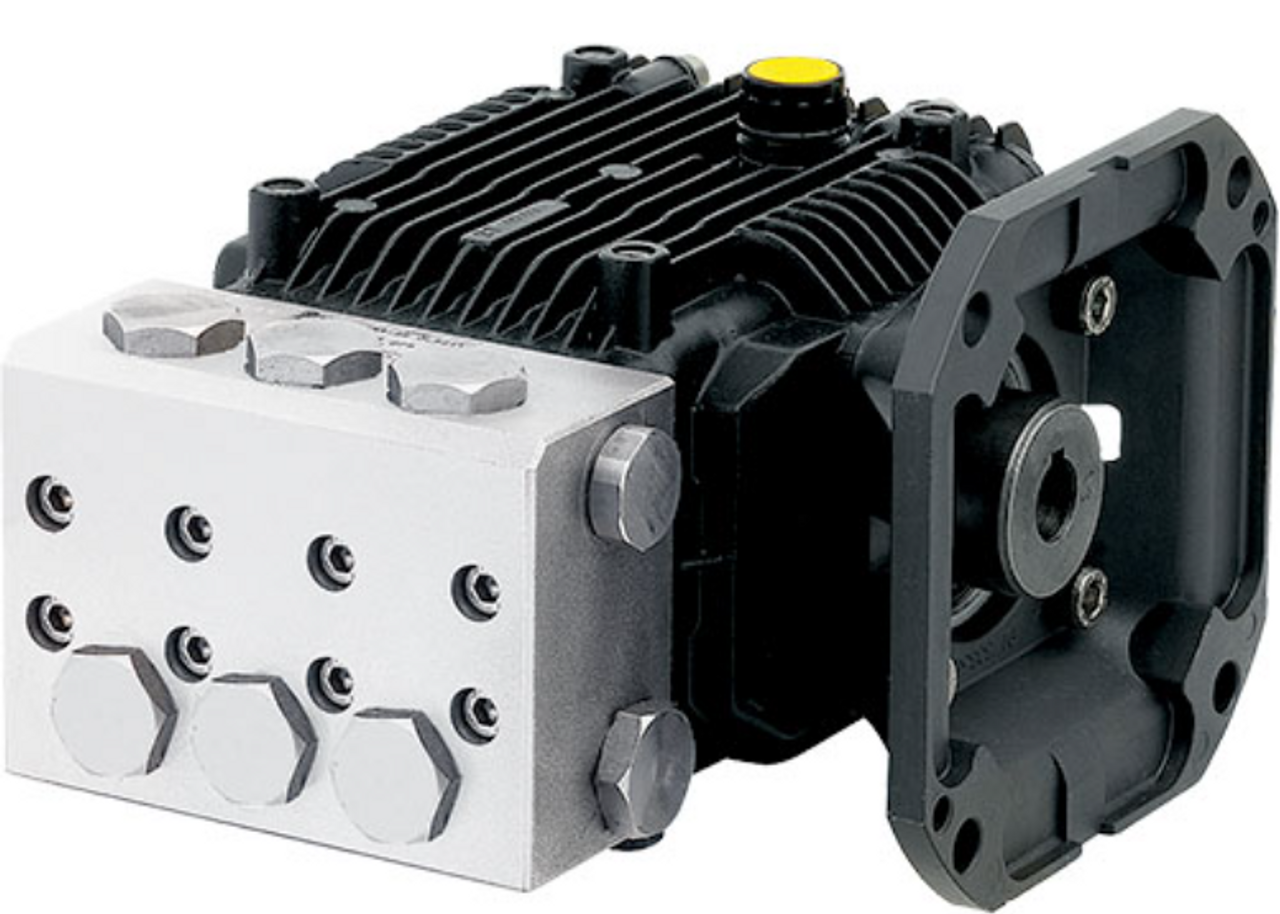

The Annovi Reverberi XMASS2.5G15E-F33, E version 5/8" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XMASS2.5G15E-F33 can produce up to 2000 Max PSI, 2.5 Max GPM, and is designed to operate at 1750 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the XMASS2.5G15E-F33 weighs in at 17 lbs and boasts a sleek compact design.
| Weight | 17 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1750 |
| Weight (lbs) |
17 |
| Bore Diameter (mm) |
15 |
| Capacity (oz) |
14.5 |
| Shaft Diameter |
5/8" |
| Series |
178 (XMA) |
| Head Material |
stainless steel, Stainless_Steel |
| Connecting Rods |
aluminum |
| Max GPM |
2.5 |
| Max L/Min |
9.5 |
| Max PSI |
2000 |
| Max Bar |
140 |
| Power EBHP |
3.43 |
| Bore Dia mm |
15 |
| Stroke mm |
10.6 |
| CSID Stamp |
5 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
14.5 |
| RPM |
1750 |
| Shaft Size |
5/8" |
| Shaft Version |
E, Electric, Electric Shaft |
| Shaft Type |
Hollow |
| Specialty |
Stainless Steel |
| Flange |
F33 |
| Market |
Specialty |
| Pump Type |
Tri-Plex Plunger |
