Product Description

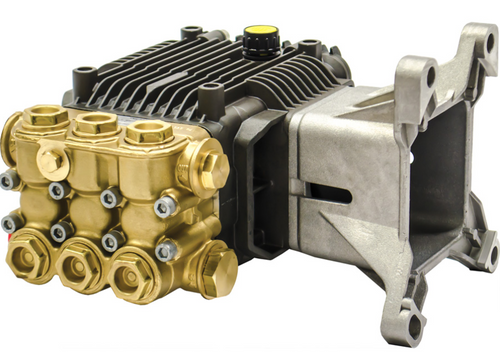

The Annovi Reverberi XMV3G30D-F24, D version 1" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XMV3G30D-F24 can produce up to 3000 Max PSI, 3 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the XMV3G30D-F24 weighs in at 16 lbs and boasts a sleek compact design.
| Weight | 16 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
3400 |
| Weight (lbs) |
16 |
| Bore Diameter (mm) |
15 |
| Capacity (oz) |
14.5 |
| Shaft Diameter |
1" |
| Series |
178 (XMV) |
| Head Material |
brass |
| Connecting Rods |
aluminum |
| Max GPM |
3 |
| Max L/Min |
11.4 |
| Max PSI |
3000 |
| Max Bar |
206 |
| Power EBHP |
6.2 |
| Bore Dia mm |
15 |
| Stroke mm |
7.6 |
| CSID Stamp |
9 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
14.5 |
| RPM |
3400 |
| Shaft Size |
1" |
| Shaft Version |
D, Direct Gas, Direct Gas Shaft |
| Shaft Type |
Hollow |
| Flange |
F24 |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
