Product Description

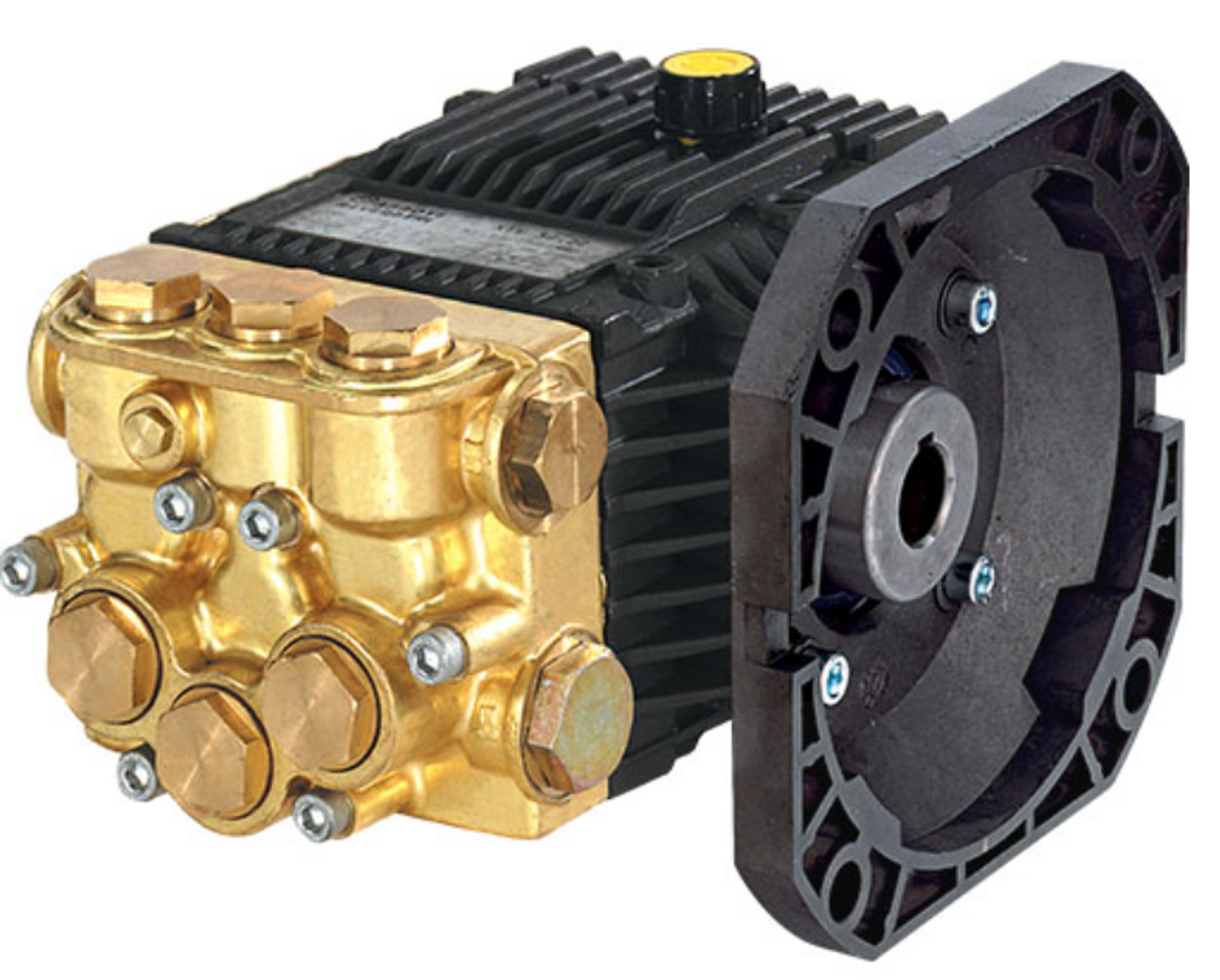

The Annovi Reverberi XTA1G15E-F8, E version 5/8" Hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XTA1G15E-F8 can produce up to 1500 Max PSI, 1 Max GPM, and is designed to operate at 1750 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the XTA1G15E-F8 weighs in at 10 lbs and boasts a sleek compact design.
| Weight | 10 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1750 |
| Weight (lbs) |
10 |
| Bore Diameter (mm) |
15 |
| Capacity (oz) |
8 |
| Shaft Diameter |
5/8" |
| Series |
132 (XTA) |
| Head Material |
brass |
| Connecting Rods |
aluminum |
| Max GPM |
1 |
| Max L/Min |
3.8 |
| Max PSI |
1500 |
| Max Bar |
103 |
| Power EBHP |
1 |
| Bore Dia mm |
15 |
| Stroke mm |
4.83 |
| CSID Stamp |
D |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
8 |
| RPM |
1750 |
| Shaft Size |
5/8" |
| Shaft Version |
E, Electric, Electric Shaft |
| Shaft Type |
Hollow |
| Flange |
F8 |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
