Product Description

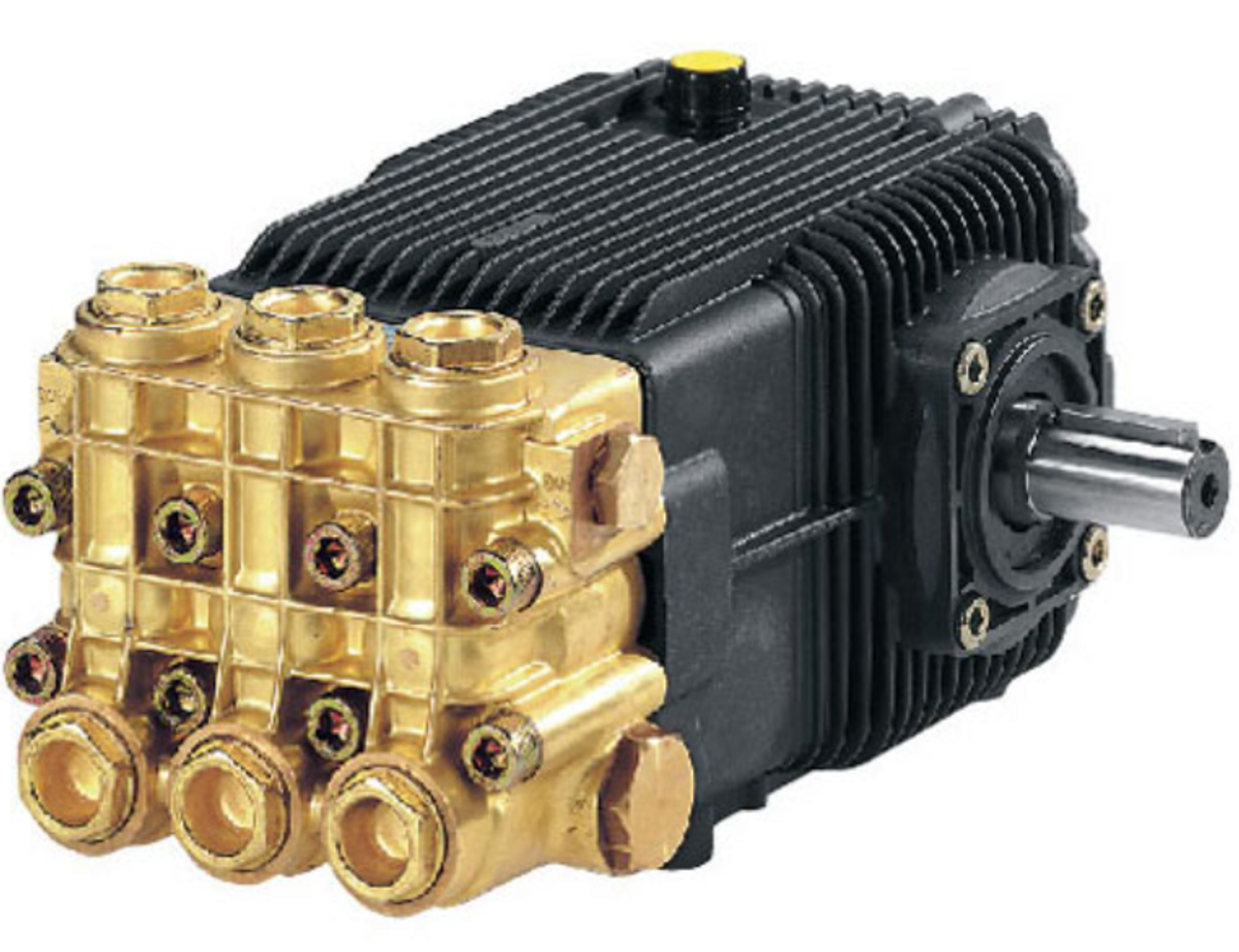

The Annovi Reverberi XWL50.20NB, NB version 24mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a bronze pump head suitable for a wide range of conditions. The XWL50.20NB can produce up to 2900 Max PSI, 13.2 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless bronze connecting rods and ceramic pistons, the XWL50.20NB weighs in at 34 lbs and delivers the performance you demand.
| Weight | 34 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Max RPM |
1450 |
| Weight (lbs) |
34 |
| Bore Diameter (mm) |
28 |
| Capacity (oz) |
32 |
| Shaft Diameter |
24mm |
| Series |
194 (XWL) |
| Head Material |
brass |
| Connecting Rods |
bronze |
| Max GPM |
13.2 |
| Max L/Min |
50 |
| Max PSI |
2900 |
| Max Bar |
200 |
| Power EBHP |
25.5 |
| Bore Dia mm |
28 |
| Stroke mm |
19.4 |
| CSID Stamp |
10 |
| Inlet (in) |
3/4" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
32 |
| RPM |
1450 |
| Shaft Size |
24mm |
| Shaft Version |
N, Natural, Neutral Shaft |
| Shaft Type |
Solid |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
