Product Description
Description

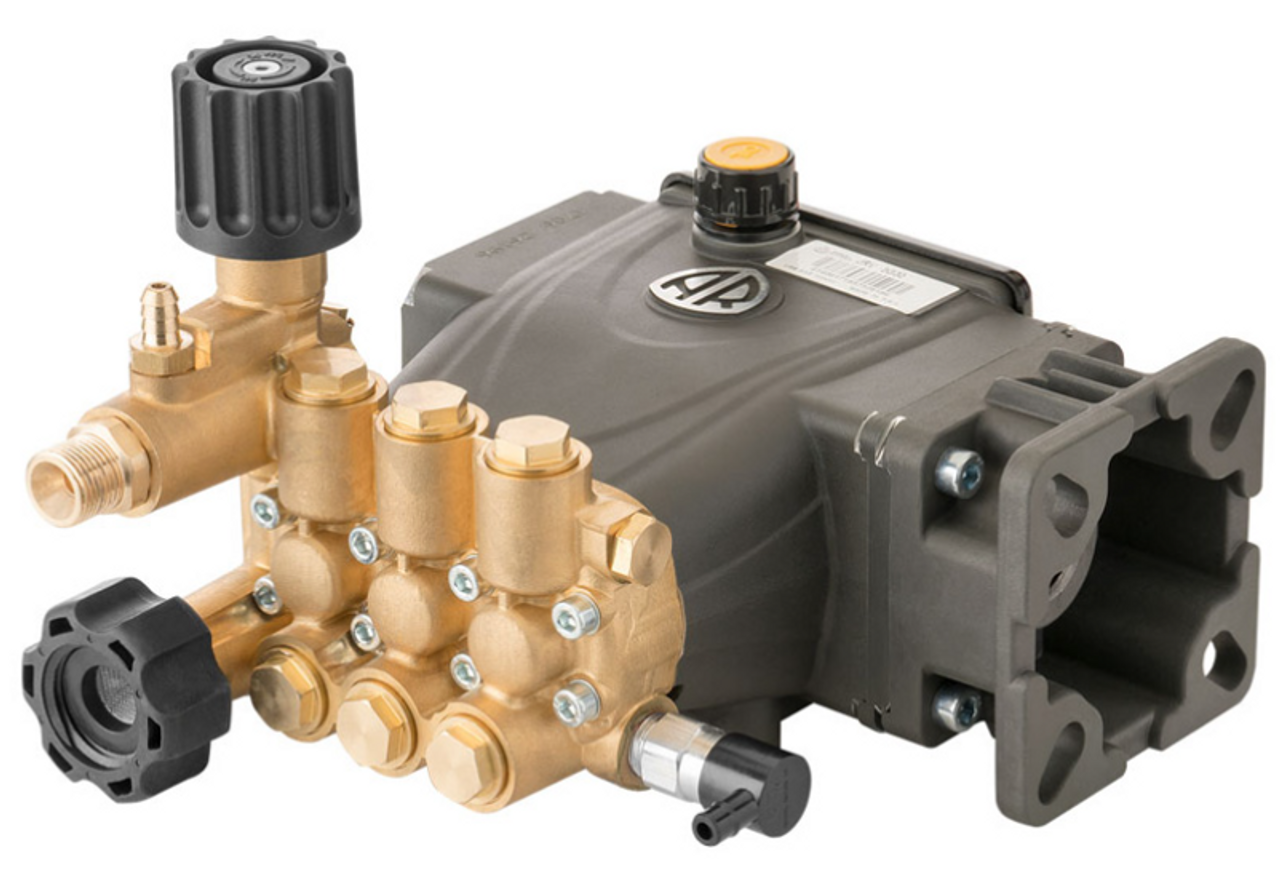

The Annovi Reverberi JRV25G30D-F7-EZ, D version 3/4" hollow shaft triplex pump is ready for direct mount. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The JRV25G30D-F7-EZ can produce up to 3000 Max PSI, 2.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the JRV25G30D-F7-EZ weighs 8.9 lbs and boasts a sleek compact design.
| Max GPM |
2.5 |
|---|---|
| Max Bar |
207 |
| Max PSI |
3000 |
| Power EBHP |
5 |
| Max RPM |
3400 |
| Weight (lbs) |
8.9 |
| Bore Diameter (mm) |
12 |
| Stroke mm |
8.8 |
| CSID Stamp |
4 |
| Inlet (in) |
3/8" F |
| Outlet (in) |
3/8" M |
| Capacity (oz) |
5.43 |
| Max Temp |
140° F |
| Flange |
F7 |
| Pump Orientation |
Horizontal |
| Shaft Type |
Hollow |
| Shaft Version |
D, Direct Gas |
| Shaft Diameter |
3/4" |
| Series |
414 (JRV) |
| Head Material |
brass |
| Connecting Rods |
aluminum |
| O-Ring |
buna |
| Max L/Min |
9.4 |
