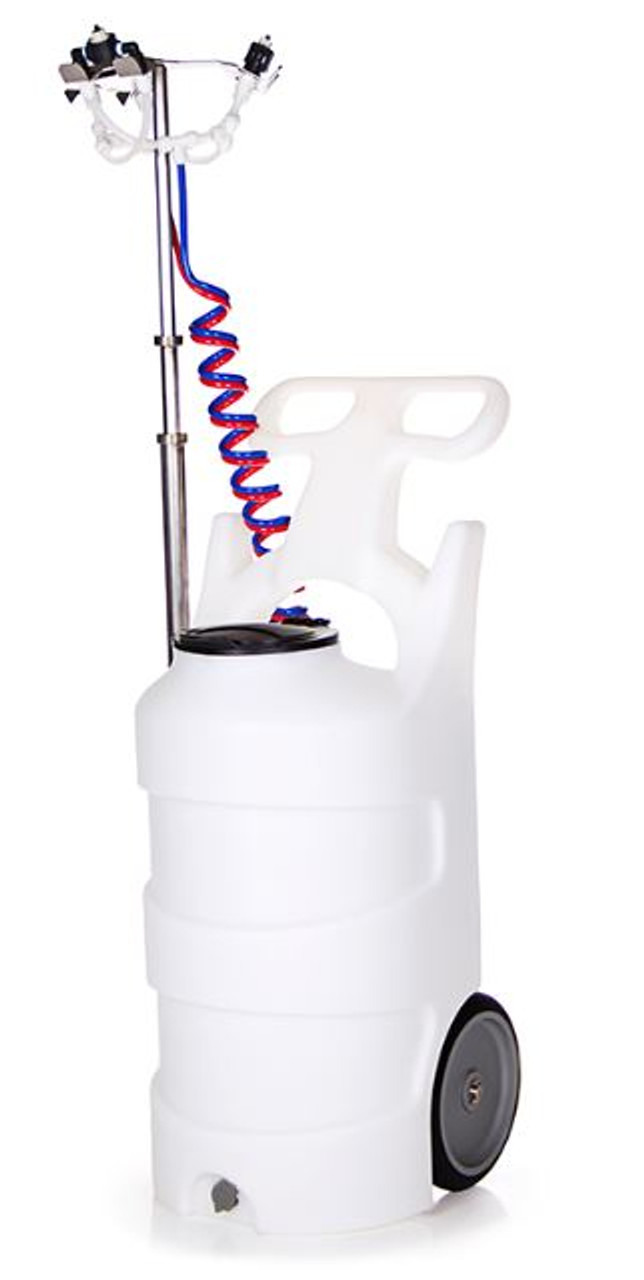

Product Overview
Features:
- Draws from pre-mixed solution
- Powered by compressed air
- 3 nozzles mounted on a telescoping mast
- Droplet size: 15 microns at 50 psi (3.4 bar)
- Polypropylene and kynar nozzle construction
- A full tank of solution will supply the unit for approximately 1 hour
- Optional timer with delay functionality – start unit and leave the room before it begins misting
- Hinged back plate provides tool-free access to components
- Quick-change pump
- Natural color tank for easy visibility of product levels
- Hinged lid
- Color coding options:
- Lid – 7 colors (BK, BL, GN, YL, RD, PL, OR)
- Front-facing drain
- In-line strainer to protect pump from debris
Specifications:
- power type - Compressed air
- chemical pickup type - Draws from pre-mixed solution
- number of products unit can draw from (and whether it draws simultaneously or one at a time) - One product
- suction line length/diameter - 3/8 in. (9.5 mm) inside diameter
- capacity - 12.5 gallons (47.32 liters)
- flow rate* - 3.7 gal/hour (14 l/hour) at each nozzle
- pump seals - Santoprene, Viton, or Kalrez
- droplet size - 15 microns at 50 psi (3.4 bar)
- coverage area** - 1 liter of solution will cover approximately 1000 cubic feet (28.3 cubic meters), up to system max of 47,320 cubic feet (1340 cubic meters)
- height - 41 inches (104 cm)
- run time from full tank** - Approx. 1 hour
- fog mast height range - 3.5-8.5 ft. (1.1-2.6 m)
- number of nozzles - 3 nozzles
- wheel type - Two 10 inch (25.4 cm) non-marking wheels
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
**Area covered and run time may vary based on humidity, air flow, and product used.
Requirements:
- compressed air - 50 psi (3.4 bar) with 9 cfm (254.9 l/min)
- liquid temperature range - 40-100ËšF (4.4-37ËšC)
- chemical compatibility - Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
