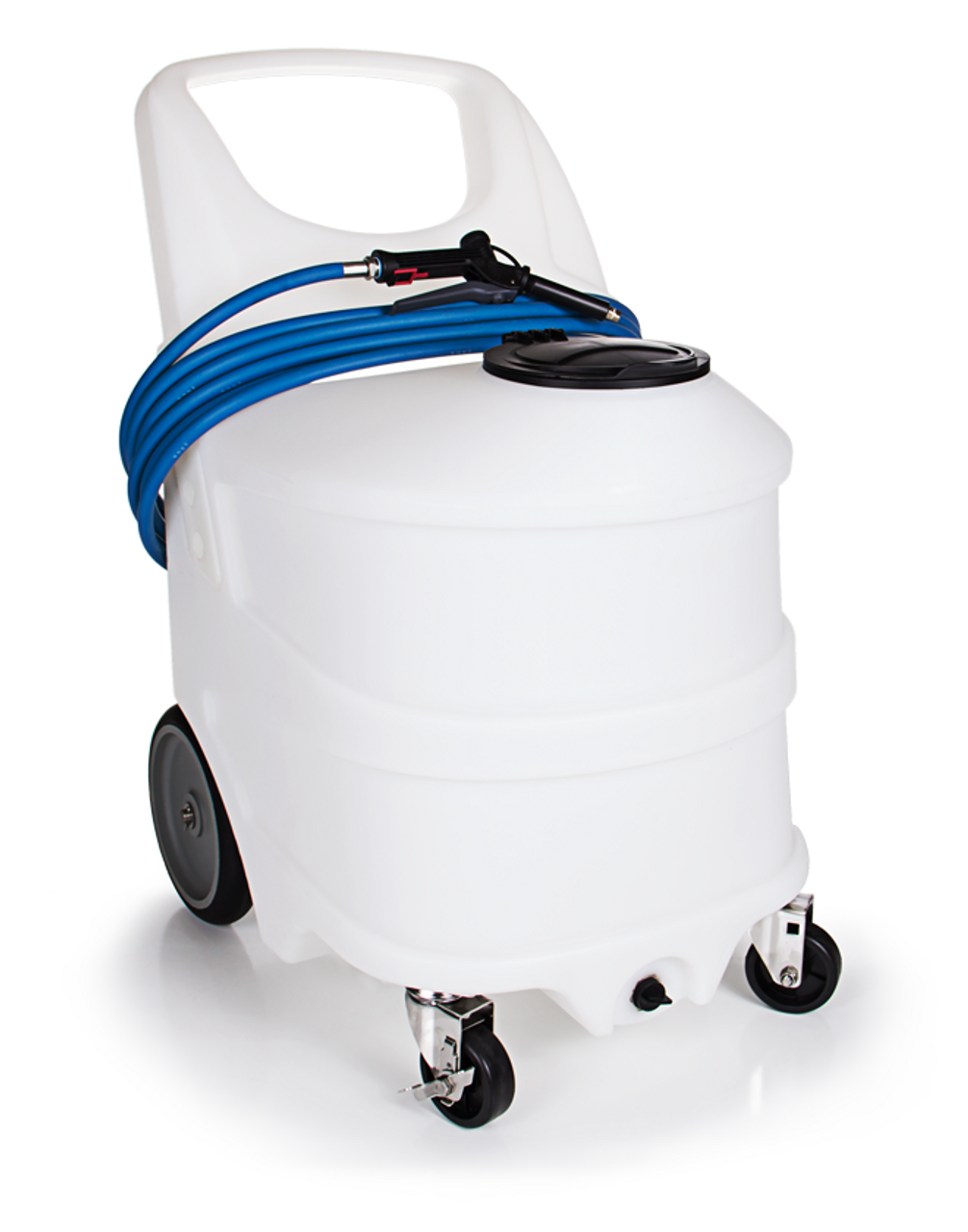

Product Overview
A
product.
product.- Draws from pre-mixed solution
- Powered by compressed air
- Hinged back plate provides tool-free access to components
- Quick-change pump
- Natural color tank for easy visibility of product levels
- Hinged lid, available in 5 colors
- Integrated hose wraps
- Front-facing drain
- In-line strainer to protect pump from debris
| COMPRESSED AIR REQUIREMENTS | 40-80 psi (3-5 bar) with 2 cfm (28.3 l/min) |
|---|---|
| LIQUID TEMPERATURE RANGE | 40-100ËšF (4.4-37ËšC) |
| CHEMICAL COMPATIBILITY | Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or MSDS for your product or contact our customer service department. |
| POWER TYPE | Compressed air |
|---|---|
| CHEMICAL PICKUP TYPE | Draws from pre-mixed solution |
| NUMBER OF PRODUCTS UNIT CAN DRAW FROM | One product |
| SUCTION LINE LENGTH/DIAMETER | 3/8 in. (9.5 mm) inside diameter |
| CAPACITY | 30 gallons (113.56 liters) |
| DISCHARGE HOSE DIAMETER/LENGTH | 30 ft. (9 m) hose, with 3/8 in. (9.5 mm) inside diameter |
| DISCHARGE WAND/TIP TYPE | Polypropylene trigger handle with 25Ëš fan tip |
| OUTPUT DISTANCE | 10-12 ft. (3.0-3.7 m) |
| OUTPUT VOLUME | 2 gal/min (7.6 l/min) |
| FLOW RATE* | 2 gal/min (7.6 l/min) |
| PUMP SEALS | Santoprene, Viton, or Kalrez |
| WHEEL TYPE | Two 10 inch non-marking wheels, two 5 inch casters with lock |
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
