Product Overview

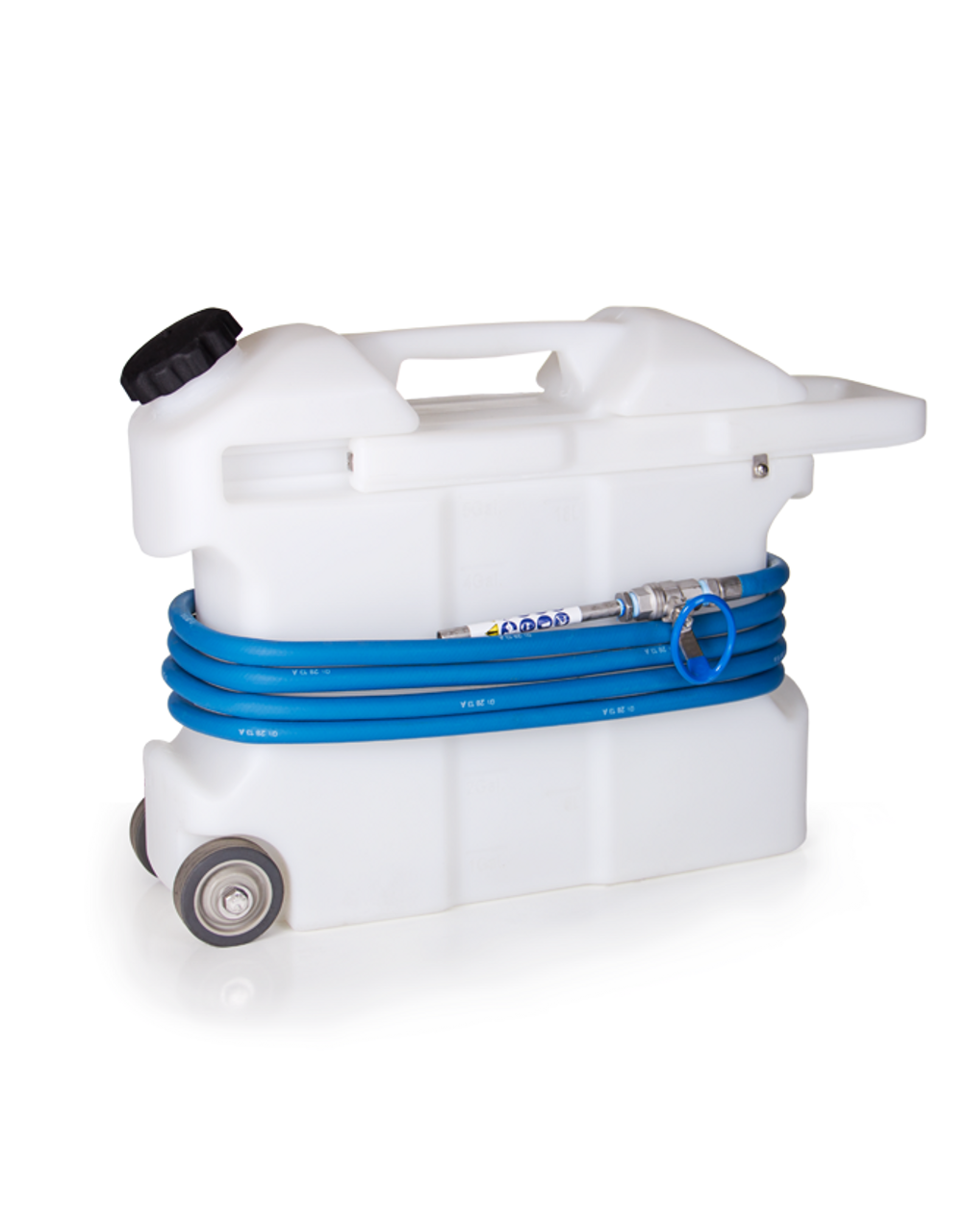

- 5 Gallon Foam UnitOur 5 gallon air-operated units are super portable. They even fit in a car trunk.
With three types of handles, plus wheels and a compact body, our 5 gallon units are easy to use on the go. But they do require an air connection to operate.
Features
- Draws from pre-mixed solution
- Powered by compressed air

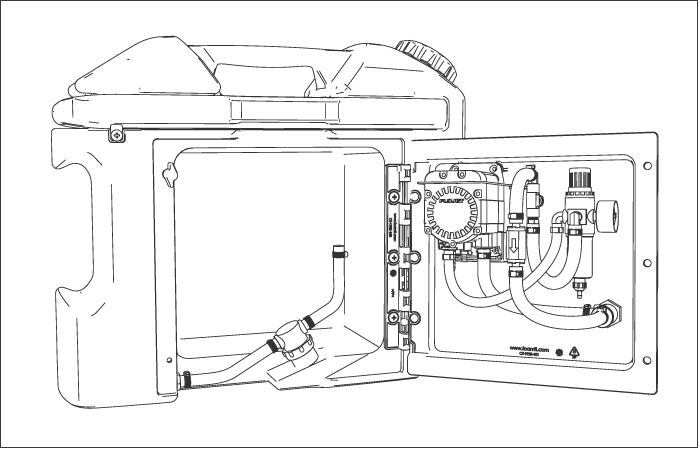

- Hinged back plate provides tool-free access to components

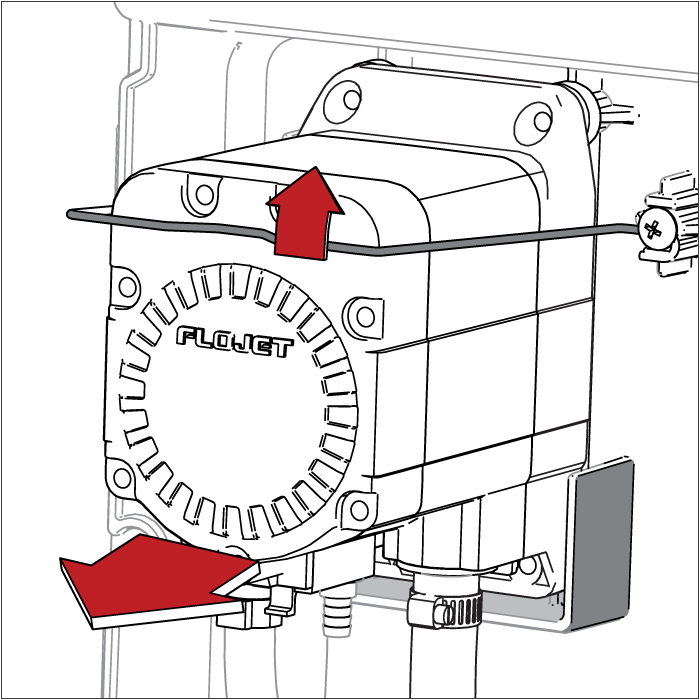

- Quick-change pump
- Natural color tank for easy visibility of product levels
- Integrated hose wraps
- In-line strainer to protect pump from debris
- Anti-kink hose protection

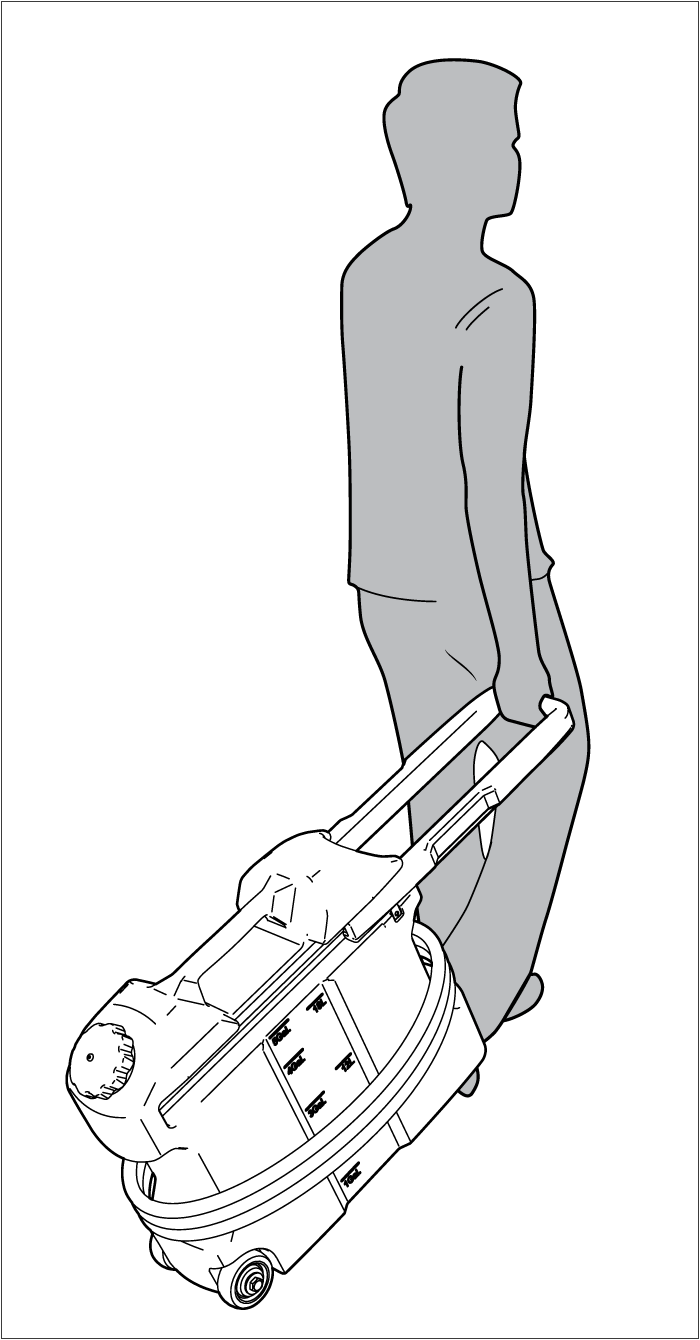

- Pull out handle for portability
- Color coding options:
- Lid – 7 colors (BK, BL, GN, YL, RD, PL, OR)
- Discharge hose – 4 colors (BL, GN, YL, RD)
Requirements
| COMPRESSED AIR | 40-80 psi (3-5 bar) with 3.5-8 cfm (99.1-227 l/min) |
|---|---|
| LIQUID TEMPERATURE RANGE | 40-100ËšF (4.4-37ËšC) |
| CHEMICAL COMPATIBILITY | Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or MSDS for your product or contact our customer service department. |
Specifications
| POWER TYPE | Compressed air |
|---|---|
| CHEMICAL PICKUP TYPE | Draws from pre-mixed solution |
| NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME) | One product |
| SUCTION LINE LENGTH/DIAMETER | 3/8 in. (9.5 mm) inside diameter |
| CAPACITY | 5 gallons (18.93 liters) |
| DISCHARGE HOSE DIAMETER/LENGTH | 20 ft. (6 m) hose, with 1/2 in. (12.7 mm) inside diameter |
| DISCHARGE WAND/TIP TYPE | 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve |
| OUTPUT DISTANCE | 15-20 ft. (4.6 to 6 m) |
| OUTPUT VOLUME | 15-30 gal/min (57 to 144 l/min) of foam |
| FLOW RATE* | 2 gal/min (7.6 l/min) |
| PUMP SEALS | Santoprene, Viton, or Kalrez |
| WHEEL TYPE | Two 3 inch non-marking wheels |
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
