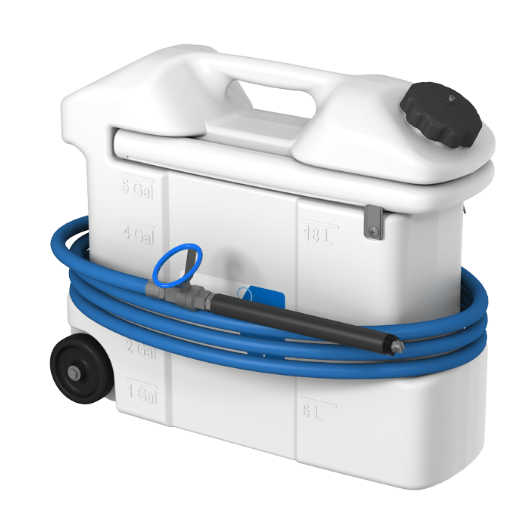

Product Overview
Features:
- Draws from pre-mixed solution
- Powered by compressed air
- Hinged back plate provides tool-free access to components
- Quick-change pump
- Natural color tank for easy visibility of product levels
- Integrated hose wraps
- In-line strainer to protect pump from debris
- Pull out handle for portability
- Fan tip wand assembly for increased coverage
- Anti-kink hose protection
- Color coding options:
- Lid – 7 colors (BK, BL, GN, YL, RD, PL, OR)
- Discharge hose – 4 colors (BL, GN, YL, RD)
Requirements:
| COMPRESSED AIR REQUIREMENTS | 40-80 psi (3-5 bar) with 2 cfm (28.3 l/min) |
|---|---|
| LIQUID TEMPERATURE RANGE | 40-100ËšF (4.4-37ËšC) |
| CHEMICAL COMPATIBILITY | Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department. |
Specifications:
| POWER TYPE | Compressed air |
|---|---|
| CHEMICAL PICKUP TYPE | Draws from pre-mixed solution |
| NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME) | One product |
| SUCTION LINE LENGTH/DIAMETER | 3/8 in. (9.5 mm) inside diameter |
| CAPACITY | 5 gallons (18.93 liters) |
| DISCHARGE HOSE DIAMETER/LENGTH | 20 ft. (6.1 m) hose, with 1/2 in. (12.7 mm) inside diameter |
| DISCHARGE WAND/TIP TYPE | 10 in. (50.8 cm) poly wand with fan tip and ball valve (Spray tips included: ST1510, ST2508, and ST4008) |
| OUTPUT DISTANCE | 6-10 ft. (1.8-3 m) (Varies due to viscosity of product) |
| OUTPUT VOLUME | 0.5-1 gal/min (1.89-3.79 l/min) (Varies due to viscosity of product and fan tip size) |
| FLOW RATE* | 2 gal/min (7.6 l/min) (Varies based on spray tip used) |
| PUMP SEALS | Santoprene, Viton, or Kalrez |
| WHEEL TYPE | Two 3 inch non-marking wheels |
