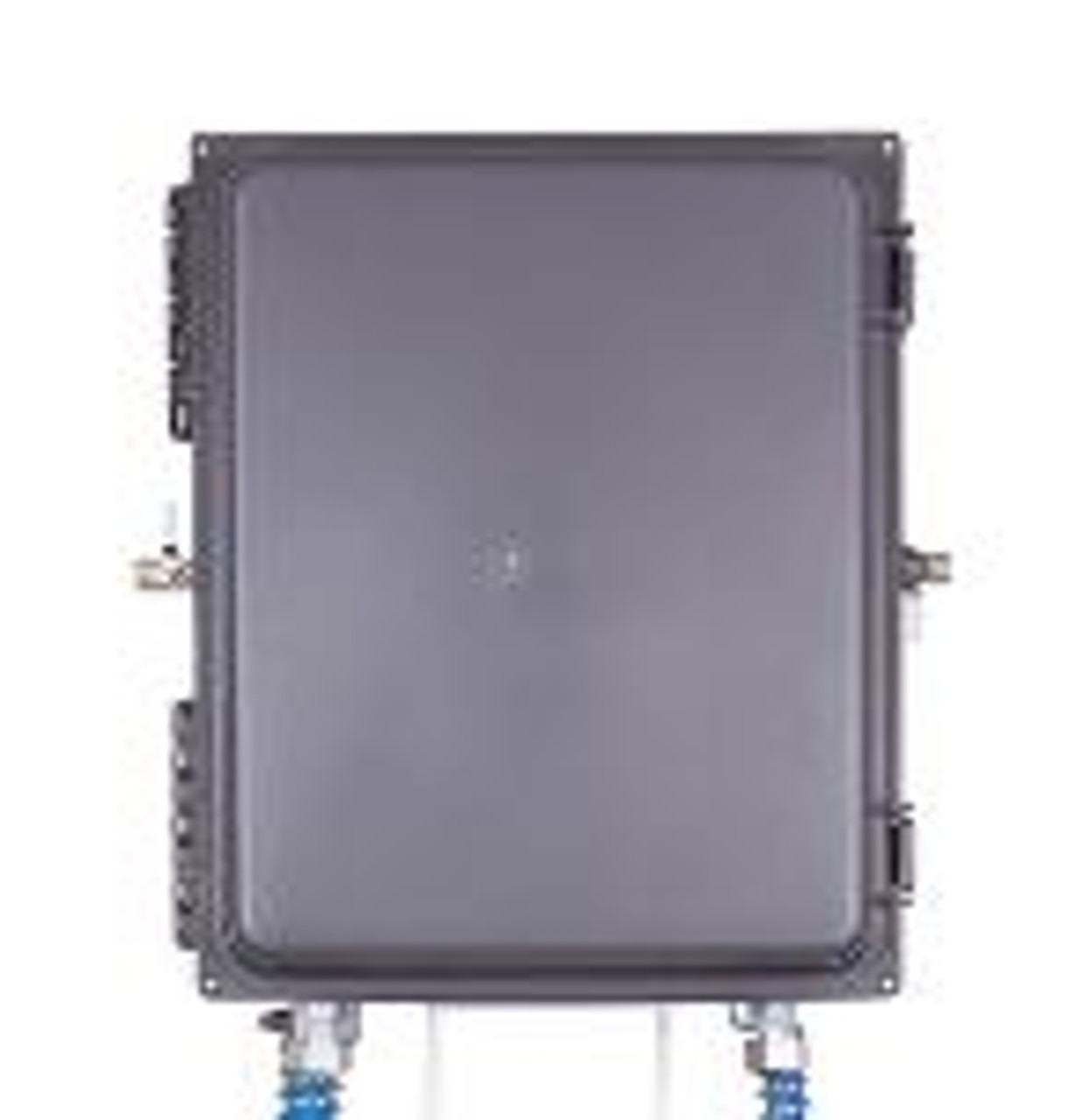

Product Overview
(CONTROL BOX ONLY)
A
|
product.
| product.- Foam and sanitize systems built inside a shared enclosure – no shared components
- Use foam and spray function independently or simultaneously
- No cross-contamination between products
- Draws from concentrate products - control dilution ratios independently for each function
- Regulates incoming water pressure to ensure consistent dilution and foam quality
- Requires separate water, compressed air, and chemical supply for each function
- Select pump seal material independently for each function
| COMPRESSED AIR REQUIREMENTS | FOAM SYSTEM: 40-80 psi (3-5 bar) with 5-10 cfm (141.6-283.3 l/min) SPRAY SYSTEM: 40-80 psi (3-5 bar) with 2 cfm (56.6 l/min) |
|---|---|
| WATER REQUIREMENTS | 10-100 psi (0.69-6.9 bar) Backflow prevention is required – consult local plumbing ordinances for more information. |
| LIQUID TEMPERATURE RANGE | 40-100ËšF (4.4-37ËšC) |
| CHEMICAL COMPATIBILITY | Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or MSDS for your product or contact our customer service department. |
| POWER TYPE | Compressed air |
|---|---|
| CHEMICAL PICKUP TYPE | Draws from concentrated product |
| DILUTION RATIO RANGE (WATER:CHEMICAL)* | FOAM SYSTEM: 14:1 to 320:1 SPRAY SYSTEM: 34:1 to 640:1 with ST2520 fan tip; 24:1 to 640:1 with ST2550 fan tip |
| NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME) | One product |
| SUCTION LINE LENGTH/DIAMETER | 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter |
| DISCHARGE HOSE DIAMETER/LENGTH | FOAM SYSTEM: 50 ft. (15.2 m) hose with 3/4 in. (19.1 mm) inside diameter SPRAY SYSTEM: 50 ft. (15.2 m) hose with 1/2 in. (12.7 mm) inside diameter |
| DISCHARGE WAND/TIP TYPE | FOAM SYSTEM: 7 in. (17.8 cm) stainless steel wand with zero tip and ball valve SPRAY SYSTEM: Polypropylene trigger handle with 25Ëš fan tip |
| OUTPUT DISTANCE | FOAM SYSTEM: 25-30 ft. (7.6-9.1 m) SPRAY SYSTEM: 10-12 ft. (3.0-3.7 m) |
| OUTPUT VOLUME | FOAM SYSTEM: 20-45 gal/min (75.7-170.0 l/min) of foam SPRAY SYSTEM: 2 gal/min (7.6 l/min) of liquid with ST2520 fan tip; 4-5 gal/min (15.1-18.9 gal/min) of liquid with ST2550 fan tip |
| FLOW RATE* | FOAM SYSTEM: 2 gal/min (7.6 l/min) SPRAY SYSTEM: 2 gal/min (7.6 l/min) with ST2520 fan tip; 4-5 gal/min (15.1-18.9 l/min) with ST2550 fan tip |
| PUMP SEALS | Santoprene, Viton, or Kalrez |
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
