Product Overview

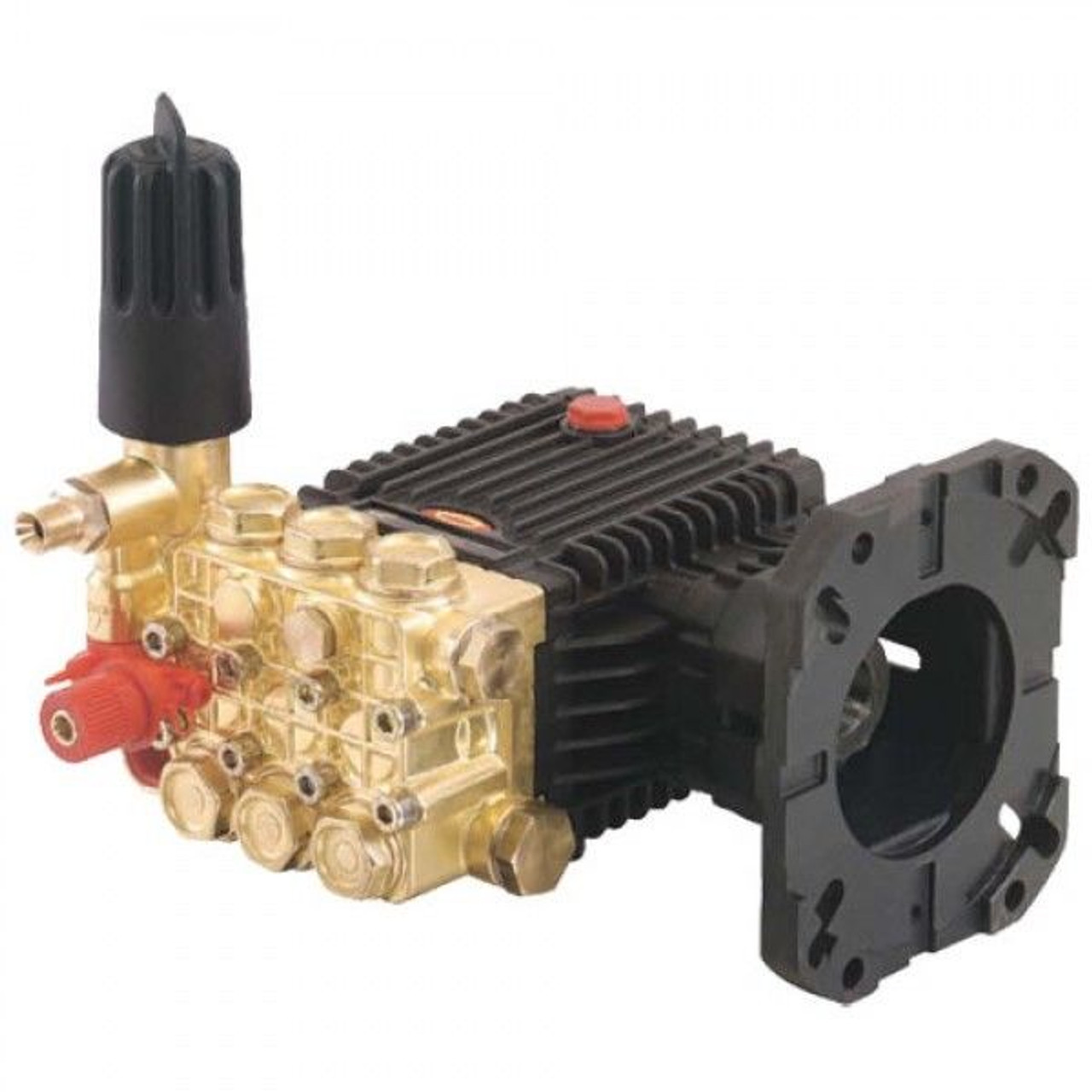

Pump, Triplex, 4.0GPM@3000PSI, 3400 RPM, 1" Hollow Shaft, w/Unloader
- Maximum Volume: 4.0 gpm
- Max. Discharge Pressure: 3500 psi
- Maximum Pump Speed: 3400 rpm
- Maximum Inlet Pressure: 125 psi
- Maximum Inlet Vacuum: 3 ft. water (2.6 in Hg)
- Bore: .591 in / 15 mm
- Stroke: .394 in / 10.0 mm
- Crankcase Oil Capacity: 14.0 oz
- Maximum Fluid Temperature: 165°F
- Inlet Port Thread: 1/2 NPT-M
- Discharge Port Thread: 3/8 NPT-M
- Shaft Diameter: 1 - Hollow
- Weight: 18.2 lbs
- Dimensions: 10.1 x 9.6 x 10.4 in
