Product Overview
Surface cleaners, parts washers, tire cleaners, high rpm, self rotating applications
- High speed, triple bearing systems
- Bulkhead fitting for mounting
- Corrosion resistant
- Highest quality and precision
- Maintenance free

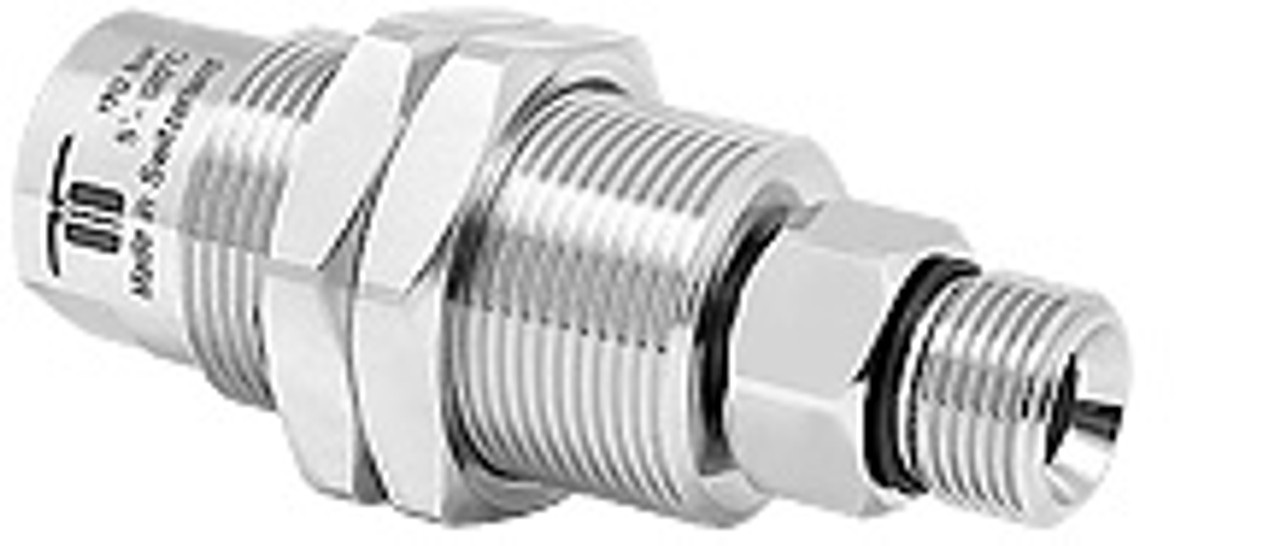

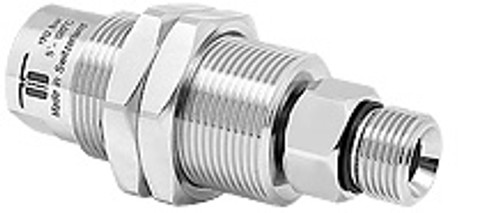

The DXG swivel comes in two versions. The DXG is nickel-plated brass and the DXGI is all stainless steel. The DXGI version is part number 37.068
Technical data
- Pressure: 2500 psi(17 MPa)
- Temperature: 40°F-250 °F
- RPM: max. 2’000 rpm
- Body:
- DXG: brass, nickel plated
- DXGI: stainless steel
- Seal: ceramic
- Bearing: 2x radial ball bearings, 1x thrust ball bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
G1 1/4”NPTF, G2 G3/8”M, NW 1/4”, SW1 0.87, SW2 0.75, SW3 1.34, L1 3.14, L2 0.39, Weight 10.0 oz
