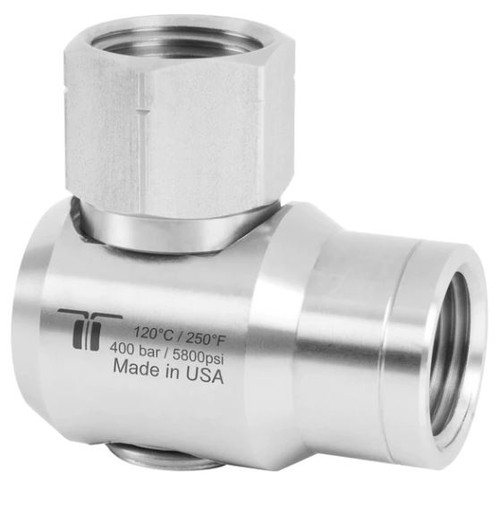

Product Overview
Hose reels
- Complete stainless steel
- Maintenance free
- Compact design
- Sliding bearings system
G1 (F) 1/4”NPTF, G2 (F) 1/4”NPTF, NW 1/4”, L1 1.77, L2 1.81, L3 1.14, L4 1.22, D1 1.25, SW 0.87
Technical data
- Pressure: 5800 psi (40 MPa)
- Temperature: 250°F
- RPM: max. 30 rpm
- Torque: max. 37 ft-lbs
- Body: stainless steel
- Inner part: Stainless steel
- Seal: O-ring NBR (optional: EPDM or FKM)
- Bearing: sliding bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
